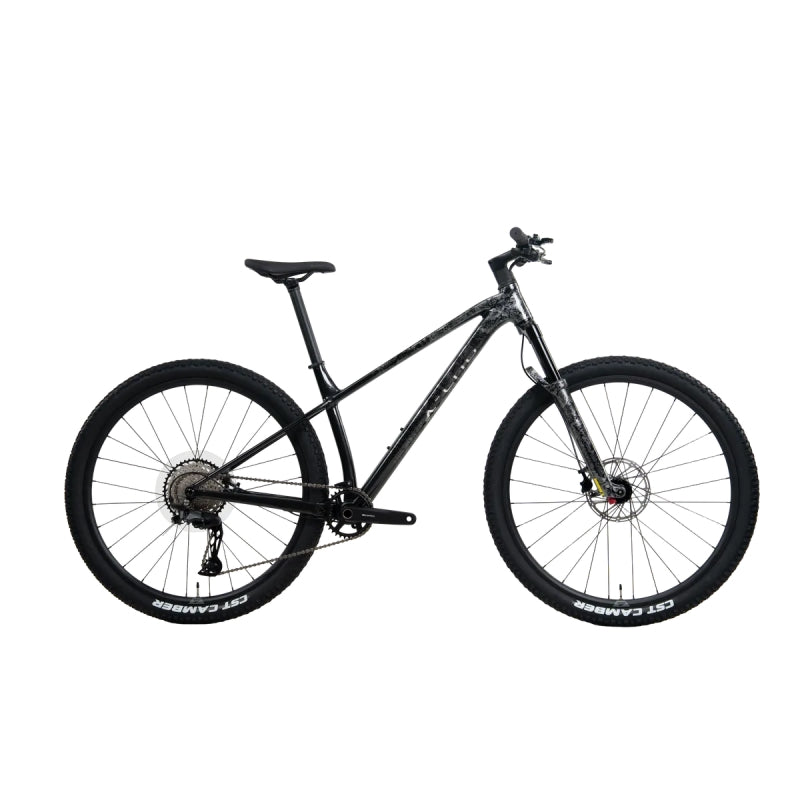

X-lab MT2

$1,099.90
Loading locations...

Description

Model MT2
Frame XDS X6 Aluminum Frame
Fork Branta Magniseum Alloy Suspension Fork, Coil Spring, Rebound Adjustable, 110mm Travel for 27.5''/ 120mm Travel for 29''
Stem Branta Aluminum Stem, 85mm Length, 0 Degree Rise
Handlebar Branta Aluminum Handlebar, 660mm Width, 7 Degree Backsweep
Seatpost Branta Aluminum 31.6mm Seatpost
Rear Derailleur Shimano Cues SL-U6000-10R, 11-Speed
Front Derailleur /
Shifter Shimano Cues RD-U6020, 11-Speed
Brakes Branta C5 Hydraulic Brakes, 2 Pistons Caliper
Cassette Sugek, 11-46T, 11-Speed
Crankset Branta Aluminum Crankset, 170mm Length, 34T, Narrow-wide teeth
Bottom Bracket BSA 24mm
Rotors Branta Steel Rotors, F: 180mm R: 160mm
Chain SUMC
Wheelset Branta Aluminum XC Wheelset
Tires CST SERRATUS 29x2.25, 30TPI
Saddle Branta R200, BED Metal Rails
Weight 12.38KG
Frame Size XS S M L XL
27.5''x350 29''x380 29''x430 29''x480 29''x530
A Head Tube Angle (deg) 66.5 66.5 66.5 66.5 66.5
B Head Tube Length (mm) 90 100 105 115 130
C Seat Tube Angle (deg) 74 75.5 75.6 75.4 75.3
D Seat Tube Length (mm) 350 380 430 480 530
E Chainstay Length (mm) 433 435 435 435 435
F BB Drop (mm) 45 60 60 60 60
G Reach (mm) 385 415 440 465 495
H Stack (mm) 557 620 624 637 647
I Top Tube Length (mm) 545 575 600 630 665
J Fork Length(mm) 485 530 530 530 530
K Fork Rake/Offset (mm) 39 45 45 45 45
L Trail (mm) 110 111 111 111 111
M Wheelbase (mm) 1081 1138 1165 1194 1230
N Front Center (mm) 652 710 737 766 802
O Stand-over Height (mm) 697 732 727 773 803

Specifications

    HandlebarBranta Aluminum Handlebar, 660mm Width, 7 Degree Backsweep
    SaddleBranta R200, BED Metal Rails
    SeatpostBranta Aluminum 31.6mm Seatpost
    StemBranta Aluminum Stem, 85mm Length, 0 Degree Rise
    Bottom BracketBSA 24mm
    BrakesBranta C5 Hydraulic Brakes, 2 Pistons Caliper
    Brakes RotorBranta Steel Rotors, F: 180mm R: 160mm
    CassetteSugek, 11-46T, 11-Speed
    ChainSUMC
    CranksetBranta Aluminum Crankset, 170mm Length, 34T, Narrow-wide teeth
    Rear DerailleurShimano Cues SL-U6000-10R, 11-Speed
    ShiftersShimano Cues RD-U6020, 11-Speed
    ForkBranta Magniseum Alloy Suspension Fork, Coil Spring, Rebound Adjustable, 110mm Travel for 27.5''/ 120mm Travel for 29"
    FrameXDS X6 Aluminum Frame
    Approx. Weight12.38KG
    TyresCST SERRATUS 29x2.25, 30TPI
    WheelsetBranta Aluminum XC Wheelset
