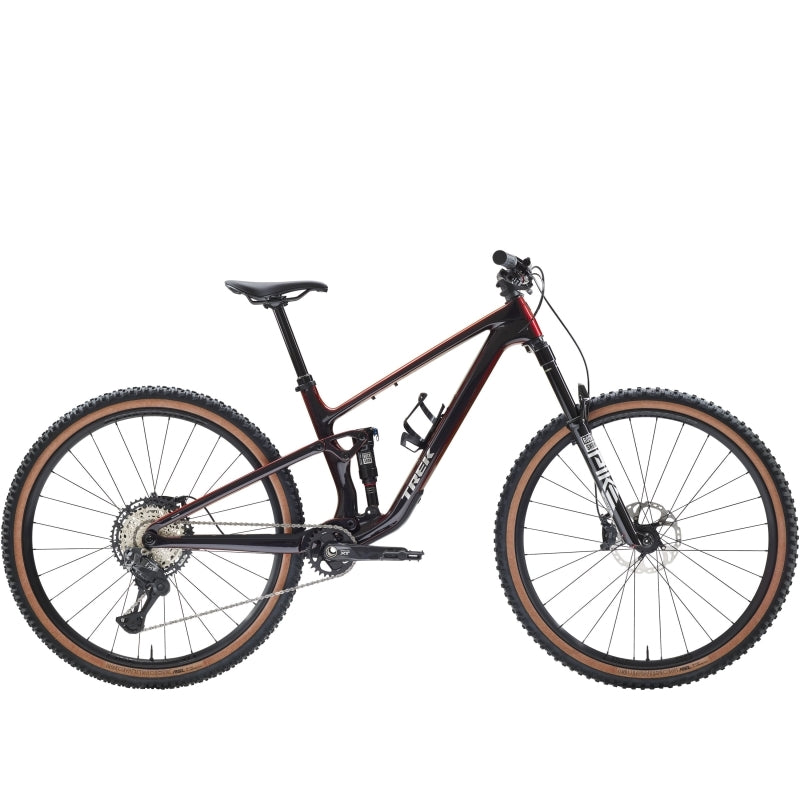

Make the Top Fuel yours
Opt for light parts and a 120 mm fork for a featherweight Top Fuel, or a 140 mm fork and longer-stroke 130 mm rear shock for extra versatility. Room for a longer dropper and MX wheels lets you customise the Top Fuel into an ultimate playful trail whip.
4-way Mino Link
Easily adjust the suspension and geometry four different ways for where and how you ride. At the flip of a coin, you can ride with more or less progressive suspension and tweak your geometry for a slacker head tube and lower BB, or steeper head tube and higher BB.
New internal storage with new BITS bags
New internal frame storage bags make it easy to ditch the pack and still carry your ride essentials.
Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
Shimano XT Di2
Looking for the latest in speed-enhancing technology? XT Di2 gives you light weight, lightning-fast shifts and die-hard reliability. Plus, it's wireless and offers endless customisation for the way you ride.
Specifications
Specifications
| Grips | Trek Line Elite, lock-on |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
| Headset | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Size: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length Size: M, ML Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length Size: L, XL Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
| Stem | Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 35 mm length |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Brakes | Shimano XT M8220 4-piston hydraulic disc |
| Brakes Rotor | Shimano RT86, 6-bolt, 180 mm |
| Cassette | Shimano XT M8200, 10-51, 12-speed |
| Chain | Shimano Ultegra/XT M8100 |
| Crankset | Shimano XT 8200, 30T, 55 mm chain-line, 170 mm length |
| Rear Derailleur | Shimano XT M8250, long cage |
| Shifters | Shimano XT Di2 M8250, 12-speed |
| Fork | RockShox Pike Ultimate, DebonAir+, Charger 3.1 RC2 damper, tapered steerer tube, 44 mm offset, Boost110, 15 mm Maxle Stealth, 140 mm travel |
| Frame | OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120 mm - 130 mm travel |
| Frame Material | Carbon |
| Rear Shock | RockShox Deluxe Ultimate RCT, 185 mm x 55 mm |
| Approx. Weight | M - 13.48 kg / 29.72 lbs (with TLR sealant, no tubes) |
| Front Wheel | Size: S Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 27.5" Size: M, ML, L, XL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
| Rear Wheel | Size: S Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru-axle, 27.5" Size: M, ML, L, XL Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru-axle, 29" |
| Tyres | Size: S Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 27.5x2.40" Size: M, ML, L, XL Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40" |
