Trek Rail+ 9.8

SKU: FP_56939
$14,999.00
Colour
Size
Loading locations...

Description

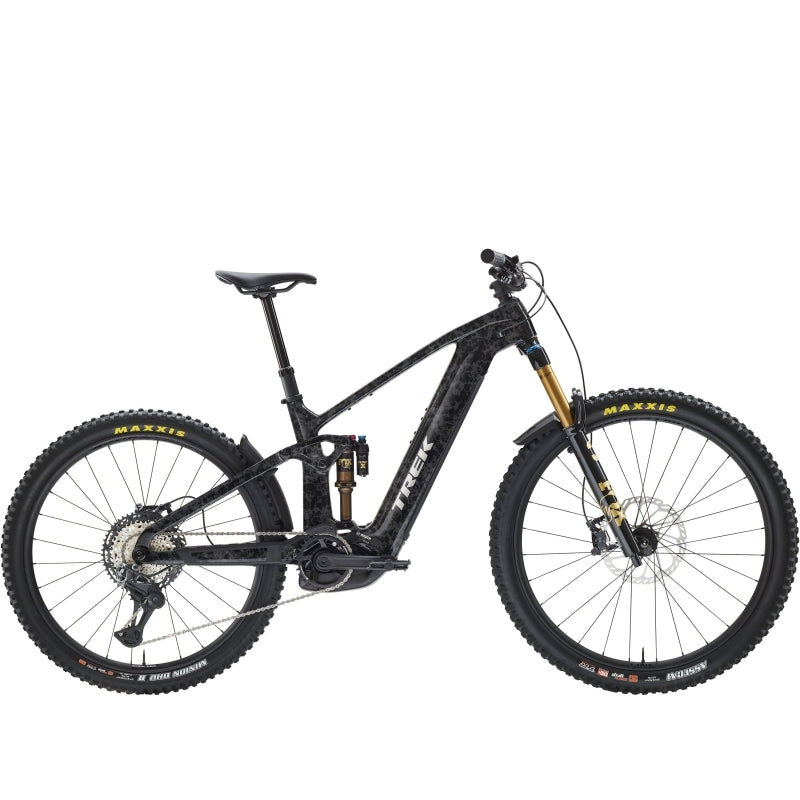

Rail+ 9.8 is a carbon enduro e-MTB built to chase peaks and hammer out laps. It starts with a hard-hitting OCLV Mountain Carbon frame and 160mm of front and rear travel from a Fox Factory suspension package to smooth out roots and rock lines. A 12-speed Shimano XT M8250 wireless drivetrain shifts clean under load, while XT M8220 4-piston brakes, a Bontrager Line dropper, and tubeless-ready Line Comp 30 wheels keep you in control.


Bosch Performance Line CX motor: 120-Nm upgrade ready
Bosch Performance Line CX sets the standard for eMTB performance with 85-Nm of torque out of the box, but can be tuned all the way up to 120-Nm and 750-W of power using the Bosch eBike Flow app. The Bosch smart system also has intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

New RIB 2.0
Removable Integrated Battery (RIB 2.0) makes it easy to remove your battery for more convenient charging or travelling, and you dont have to worry about dropping it thanks to a secondary safety catch.

Extend your ride
Wanna take your ride even further? Pair a 250-Wh PowerMore range extender with your bike to chase your most epic adventures.

Bosch Mini Remote
The compact, ergonomic Mini Remote lets you easily change assist level, activate Walk mode, or turn on optional lights, all without moving your hand off the handlebar. Plus, it's wireless and connects with your System Controller via Bluetooth

Mixed wheel size
You get a 29INCH front wheel for monster truckin' over stuff, with a smaller 27.5INCH wheel out back for getting rowdy.

Specifications
    GripsTrek Line Elite, lock-on
    HandlebarRace Face Aeffect, alloy, 35 mm, 40 mm rise, 800 mm width
    HeadsetIntegrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
    PedalsVP-536 nylon platform
    SaddleVerse Short Comp, steel rails, 145 mm width
    SeatpostSize: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length Size: M Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length Size: L, XL Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
    StemBontrager Elite, 35 mm, 0-degree, 45 mm length
    BrakesShimano XT M8220 4-piston hydraulic disc
    Brakes RotorSize: S, M, L, XL Shimano RT-6B750, 6-bolt, 220 mm
    CassetteShimano XT M8200, 10-51, 12-speed
    ChainShimano XT M8100, 12-speed
    ChainringE*thirteen, 34T, steel
    CranksetE*thirteen E*spec Plus, 160 mm length
    Rear DerailleurShimano XT Di2 M8260, 12-speed
    ShiftersShimano XT Di2 M8250, 12-speed
    Display/ControllerBosch Kiox 400C, mini remote
    E MotorBosch Performance Line CX (Europe and APAC: 25 km/h, US and ROW: 20 mph / 32 km/h)
    E Motor BatteryBosch PowerTube 800 Wh, smart system
    E Motor ChargerBosch standard 4A, 230V, smart system
    ForkFox Factory 38, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 160 mm travel
    FrameOCLV Mountain Carbon main frame, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel
    Frame MaterialCarbon
    Front Travel160mm
    Rear ShockFox Factory Float X, 2-position damper, 205 mm x 65 mm
    Rear Travel160mm
    Approx. WeightM - 23.98 kg / 52.87 lbs (with TLR sealant, no tubes)
    ExtrasTrek custom mudguard
    Front WheelSize: S Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 27.5" Size: M, L, XL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
    Rear WheelBontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru-axle, 27.5"
    TyresSize: S Maxxis Minion DHR II, tubeless ready, 3C, Double Down, MAXXGRIP, 27.5x2.5" Size: M, L, XL Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5"
