Trek Rail+ 8

SKU: FP_57036
$10,999.00
Colour
Size
Loading locations...

Description

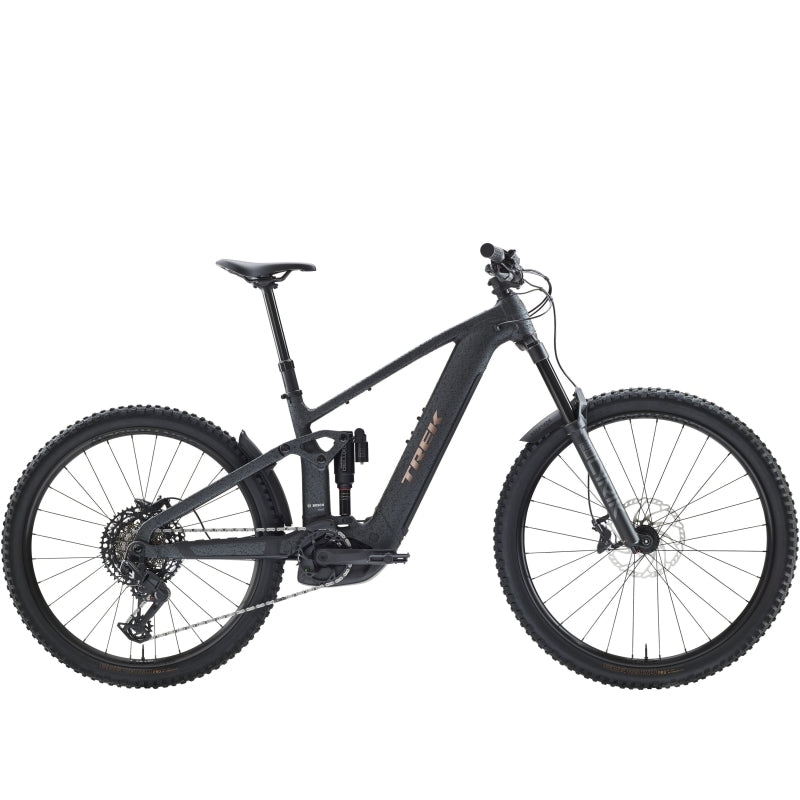

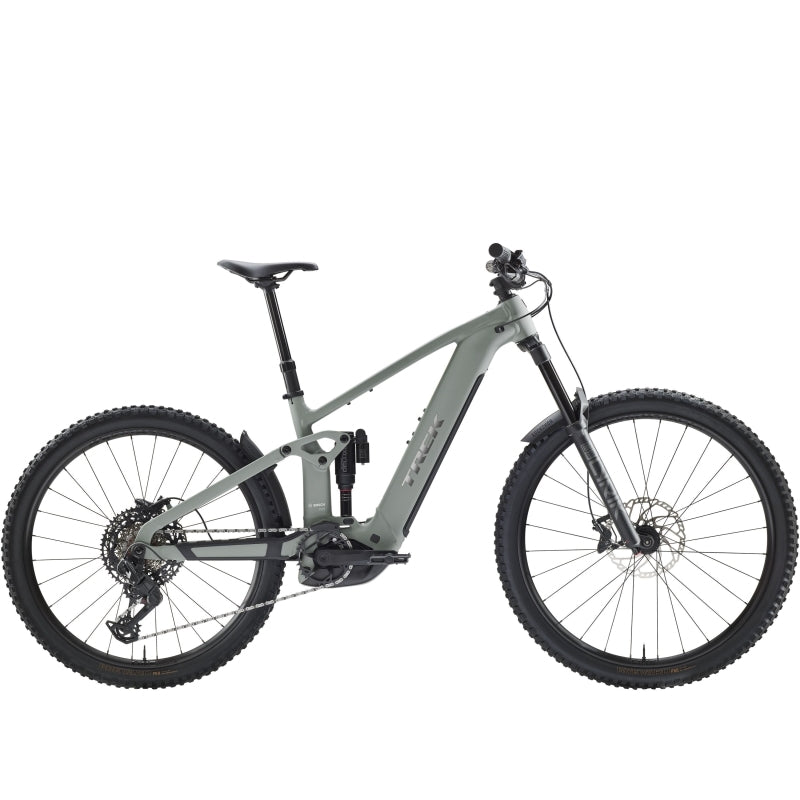

Rail+ 8 is an aluminum enduro e-bike with big power and plenty of travel for wild, ride-anything adventures. It starts with an Alpha Platinum Aluminum frame paired with a RockShox Super Deluxe shock and Lyrik fork to tackle chunky backcountry rock gardens. A SRAM Eagle drivetrain delivers smooth shifting, while Shimano MT620 4-piston brakes, a Bontrager Line dropper post, and tubeless-ready Line TLR 30 wheels round out the build.


Bosch Performance Line CX motor: 120Nm upgrade ready
Bosch Performance Line CX sets the standard for eMTB performance with 85Nm of torque out of the box, but can be tuned all the way up to 120Nm and 750W of power using the Bosch eBike Flow app. The Bosch smart system also has intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

New RIB 2.0
Removable Integrated Battery (RIB 2.0) makes it easy to remove your battery for more convenient charging or travelling, and you dont have to worry about dropping it thanks to a secondary safety catch.

Extend your ride
Wanna take your ride even further? Pair a 250Wh PowerMore range extender with your bike to chase your most epic adventures.

Bosch Mini Remote
The compact, ergonomic Mini Remote lets you easily change assist level, activate Walk mode, or turn on optional lights, all without moving your hand off the handlebar. Plus, it's wireless and connects with your System Controller via Bluetooth

Mixed wheel size
You get a 29INCH front wheel for monster truckin' over stuff, with a smaller 27.5INCH wheel out back for getting rowdy.

Specifications

    GripsTrek Line Comp, nylon lock-on
    PedalsVP-536 nylon platform
    SaddleBontrager Verse P3, steel rails
    SeatpostSize: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length Size: M Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length Size: L, XL Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
    StemBontrager Elite, 35 mm, 0-degree, 45 mm length
    BrakesShimano MT620 hydraulic disc
    Brakes RotorShimano RT66, 6-bolt, 203 mm
    CassetteSRAM Eagle XS-1270, T-Type,10-52, 12-speed
    ChainSRAM Eagle 70, T-Type, 12-speed
    ChainringSRAM T-Type, 34T, steel
    CranksetFSA alloy, 160 mm length
    Rear DerailleurSRAM Eagle 70, T-Type
    ShiftersSRAM Eagle 70, 12-speed
    E MotorBosch Performance Line CX (Europe and APAC: 25 km/h, US and ROW: 20 mph / 32 km/h)
    E Motor BatteryBosch PowerTube 800 Wh, smart system
    E Motor ChargerBosch standard 4A, 230V, smart system
    Remote SystemBosch Kiox 400C, mini remote
    ForkRockShox Lyrik, Delta RC, DebonAir+, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel
    FrameAlpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel
    Frame MaterialAlloy
    Front Travel160mm
    Rear ShockRockShox Super Deluxe, Linear XL, 205 mm x 65 mm
    Rear Travel160mm
    AccessoriesTrek custom mudguard
    Approx. WeightM - 24.68 kg / 54.42 lbs (with TLR sealant, no tubes)
    Front HubBontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
    Rear HubBontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12 mm thru axle
    RimsBontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
    TyresSize: S Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50" Size: M, L, XL Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
