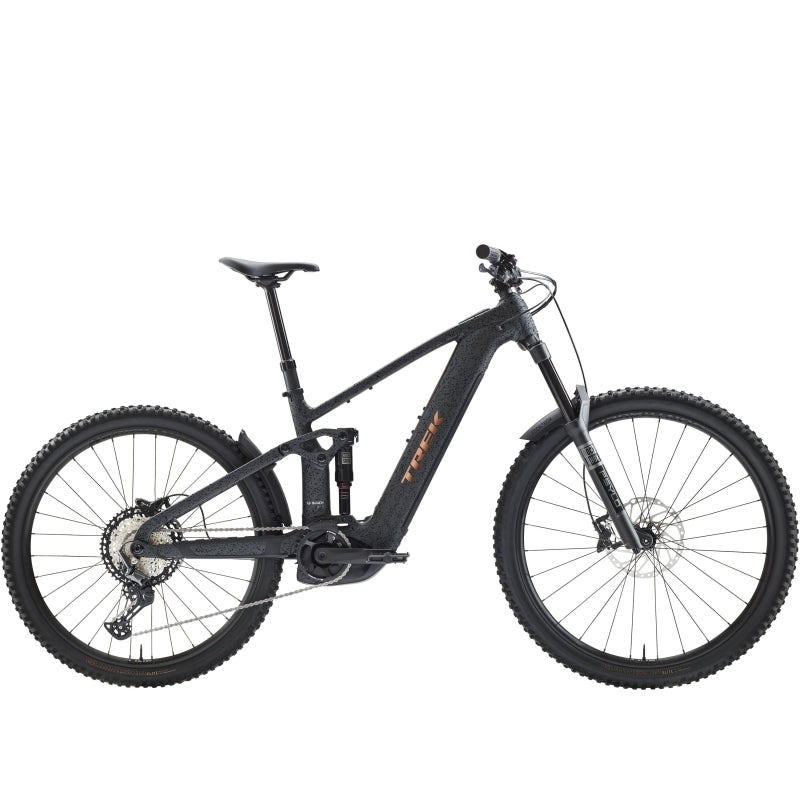

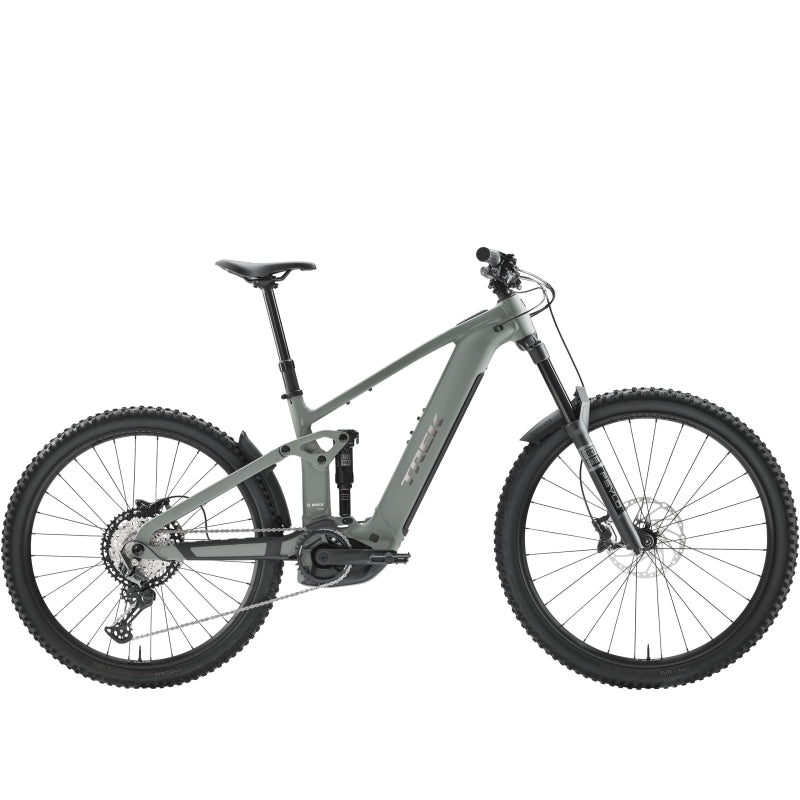

Trek Rail+ 5

SKU: FP_57028
$9,299.00
Colour
Size
Loading locations...

Description

Rail+ 5 is an alloy enduro e-bike that delivers big value for big adventures. Its rugged Alpha Platinum Aluminum frame pairs with a RockShox Deluxe Select shock and Psylo Silver RC fork (160mm rear/front) to smooth out rough terrain. A 12-speed Shimano Deore drivetrain and 4-piston MT420 brakes deliver clean shifting and reliable stopping, while a TranzX dropper and tubeless-ready Bontrager Line TLR 30 wheels complete the build.

Bosch Performance Line CX motor: 120Nm upgrade ready
Bosch Performance Line CX sets the standard for eMTB performance with 85Nm of torque out of the box, but can be tuned all the way up to 120Nm and 750W of power using the Bosch eBike Flow app. The Bosch smart system also has intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

New RIB 2.0
Removable Integrated Battery (RIB 2.0) makes it easy to remove your battery for more convenient charging or travelling, and you dont have to worry about dropping it thanks to a secondary safety catch.

Extend your ride
Wanna take your ride even further? Pair a 250Wh PowerMore range extender with your bike to chase your most epic adventures.

Bosch Mini Remote
The compact, ergonomic Mini Remote lets you easily change assist level, activate Walk mode, or turn on optional lights, all without moving your hand off the handlebar. Plus, it's wireless and connects with your System Controller via Bluetooth

Mixed wheel size
You get a 29INCH front wheel for monster truckin' over stuff, with a smaller 27.5INCH wheel out back for getting rowdy.

Specifications

    GripsTrek Line Comp, nylon lock-on
    HandlebarBontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
    PedalsVP-536 nylon platform
    SaddleBontrager Verse P3, steel rails
    SeatpostSize: S TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm Size: M, L, XL TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm
    StemBontrager Comp, 31.8 mm, 7-degree, 35 mm length
    BrakesShimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
    Brakes RotorShimano RT64, CentreLock, 203 mm
    CassetteShimano M6200, 10-51, 12-speed
    ChainShimano Deore M6100, 12-speed
    ChainringE*thirteen, 34T, steel
    CranksetFSA alloy, 160 mm length
    Rear DerailleurShimano Deore M8200, long cage
    ShiftersShimano Deore M6200
    Display/ControllerBosch Kiox 400C, mini remote
    E MotorBosch Performance Line CX (Europe and APAC: 25 km/h, US and ROW: 20 mph / 32 km/h)
    E Motor BatteryBosch PowerTube 800 Wh, smart system
    E Motor ChargerBosch standard 2A, 230V, smart system
    ForkRockShox Psylo Silver RC, Solo Air, Motion Control, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel
    FrameAlpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel
    Frame MaterialAlloy
    Front Travel160mm
    Rear ShockRockShox Deluxe Select, 205 mm x 65 mm
    Rear Travel160mm
    AccessoriesTrek custom mudguard
    Approx. WeightM - 24.78 kg / 54.64 lbs (with TLR sealant, no tubes)
    Front HubShimano TC500 alloy, CentreLock, 110x15 mm thru axle
    Rear HubShimano TC500 alloy, CentreLock, 148x12 mm thru axle
    RimsBontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
    TyresSize: S Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40" Size: M, L, XL Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40"
