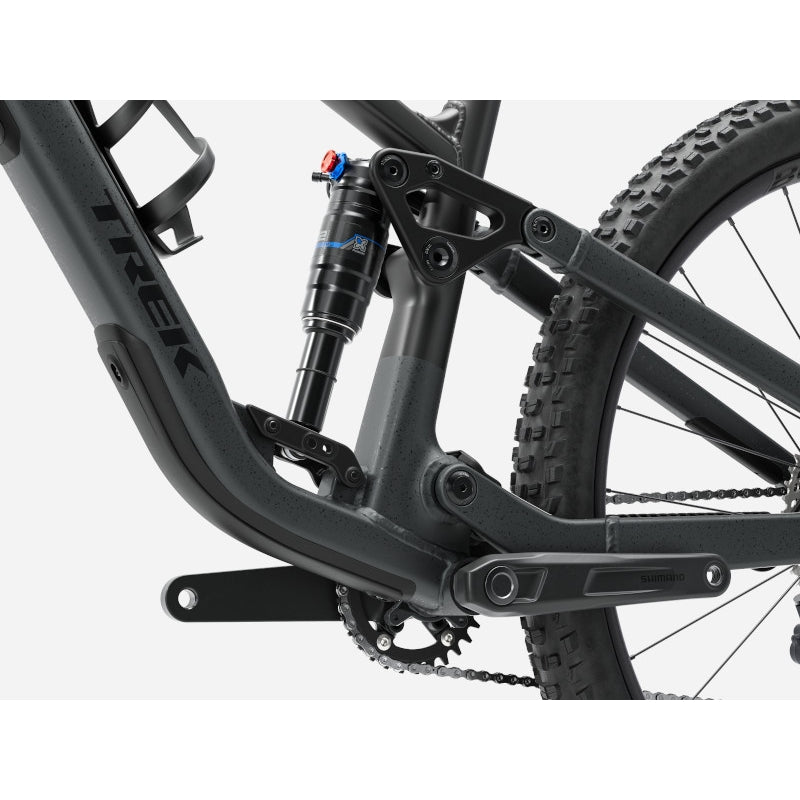

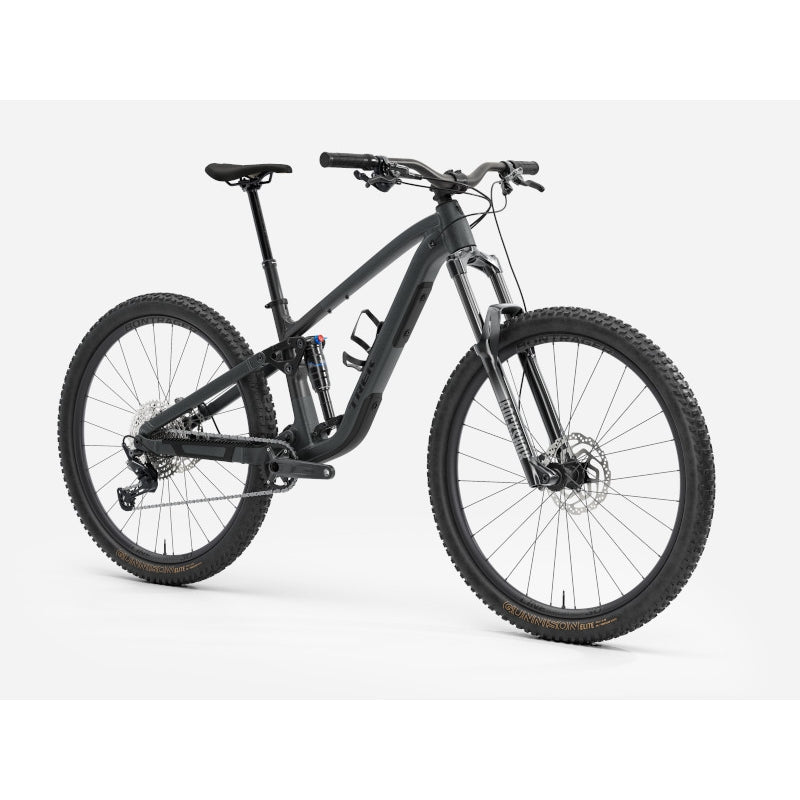

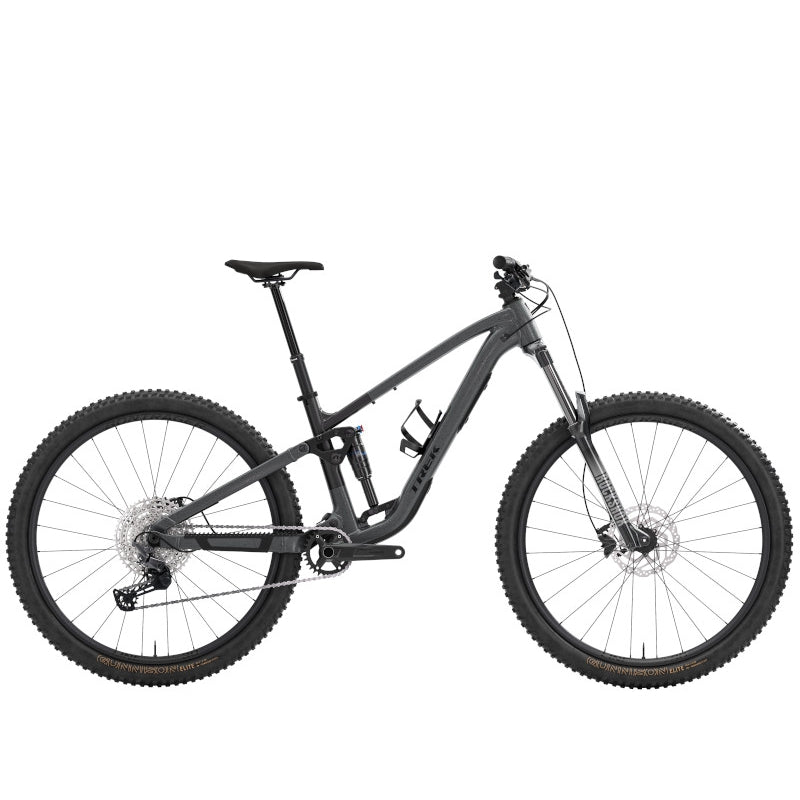

Trek Fuel EX 5 Gen 7

SKU: FP_44104
$4,299.00
Shipping calculated at checkout.
Loading locations...

Description
The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock, Tubeless Ready wheels, a 12-speed Shimano Deore drivetrain and a TranzX dropper post, so you're ready for anything.

Specifications
    GripsTrek Line Comp, nylon lock-on
    HandlebarBontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
    HeadsetFSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
    SaddleBontrager Verse Short, stainless steel rails
    SeatpostSize: S TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm Size: XL, L, M TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm
    StemBontrager Comp, 31.8 mm, 7-degree, 35 mm length
    Bottom BracketShimano BB-MT501 BSA
    BrakesShimano hydraulic disc, MT201 lever, MT200 calliper
    Brakes RotorShimano RT10, CenterLock, 180 mm
    CassetteShimano Deore M6100, 10-51, 12-speed
    ChainShimano Deore M6100, 12-speed
    ChainringMax: 34T (oval – 32T) Min: 30T (oval – 32T)
    CranksetShimano MT512, 30T ring, 55 mm chain line, 170 mm length
    Rear DerailleurShimano Deore M6100, long cage
    ShiftersShimano Deore M6100, 12-speed
    ForkRockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
    FrameAlpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
    Front Travel150MM
    Rear ShockX-Fusion Pro 2, 2-position damper, 205 mm x 60mm
    Rear Travel145MM - 160MM
    Approx. WeightM - 17.02 kg / 37.53 lbs (with TLR sealant, no tubes)
    Front HubShimano TC500 alloy, CentreLock, 110x15 mm thru axle
    Rear HubShimano TC500 alloy, CentreLock, 148x12 mm thru axle
    RimsBontrager Line TLR 30, Tubeless-Ready
    TyresBontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi
