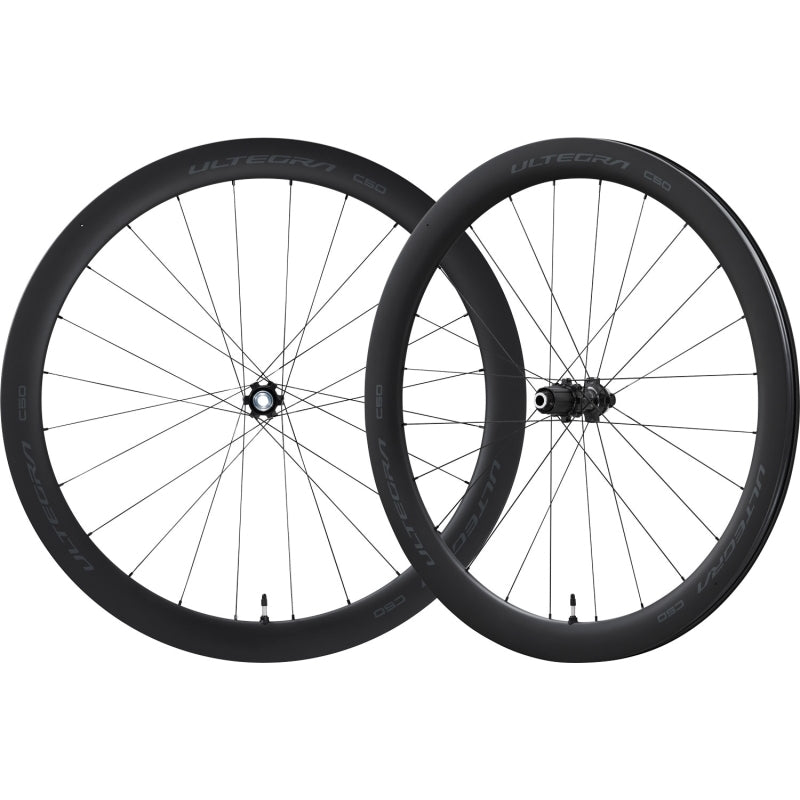

Shimano Ultegra WH-R8170-C50-TL Wheelset

ULTEGRA WH-R8170-TL 28" Center-Lock Carbon Wheelset
The new Shimano Ultegra wheel range is designed to be strong, lightweight and aerodynamic for outstanding performance on any road. The following rim heights are available on the WH-R8170-TL: 36 mm, 50 mm and 60 mm.
THE SCIENCE OF SPEED: Shimano Ultegra WH-R8170-TL Center-Lock
Great speed means great responsibility. That's why, faced with the task of making the new ULTEGRA groupset even faster, Shimano decided to take a holistic and 100% performance-focused approach. Shimano's new 12-speed road groupset delivers unparalleled control and comfort anytime, anywhere - whether you're competing in an amateur race, chasing your personal best, or out for a social ride. That is "Science of Speed". And it's what sets SHIMANO apart from the rest.

The ULTEGRA WH-R8170-TL is a true gem in the new wheelset line-up. With a lighter, wider full carbon rim and a lighter hub, the WH-R8170-TL is perfectly equipped for climbs in the mountains. The new rims with 36 mm, 50 mm and 60 mm high profile - offer good aerodynamic properties despite their extremely low weight. The tubeless, carbon rim features a 21 mm internal width that pairs nicely with wider, modern tires while the HYPERGLIDE cassette body is compatible with 11 and 12-speed cassettes.
Features - Shimano ULTEGRA WH-R8170-TL 28" Center-Lock Wheelset | 12x100mm / 12x142mm
- Shared rim profile with R9200 DURA-ACE wheels
- Best all-round wheelset
- Balanced low inertia & aerodynamics
- Responsive acceleration
- Improved drive rigidity
- OPTBAL spoke system
- Lightweight within rigid
- Road E-THRU 12mm
- Ultra-light full carbon rim
- Disc brake system CENTER LOCK
- The HYPERGLIDE cassette body is compatible with 11 and 12-speed cassettes
Product features
- Use: Road
- Group: Ultegra R8100
- Model: WH-R8170-TL
- Wheel size: 28"
- Tyre type: UST Tubeless Ready / Clincher
- Rim size: 622 x 21C
- Rim inner witdh: 21mm
- Rim outer witdh: 28mm
- Brake type: Disc Center-Look
- Freehub body: Shimano HG 11/12-speed Road
- Over locknut: front 12 x 100mm / rear 12 x 142mm
- Axle Fixing method: 12mm E-thru
- Contact seal: Labyrinth and Contact
- Spokes: front 24 / rear 24
- Tire recommended size: 25-622 to 32-622
Rim height (choose variant)
- C36 Rim (36mm)
- C50 Rim (50mm)
- C60 Rim (60mm)
Material
- Rim: Carbon
- Hub: Aluminum
- Spokes: Stainless steel
- Nipples: Aluminum
Weight (manufacturer information)
- C36 (Front 657g | Rear 831g | Set 1488g)
- C50 (Front 698g | Rear 872g | Set 1570g)
- C60 (Front 738g | Rear 911g | Set 1649g)
