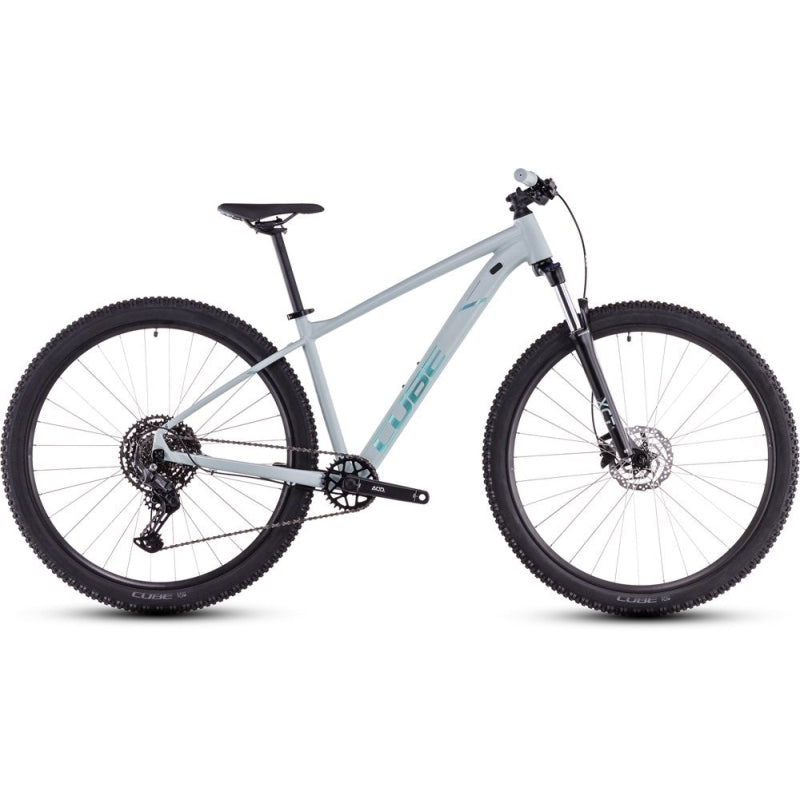

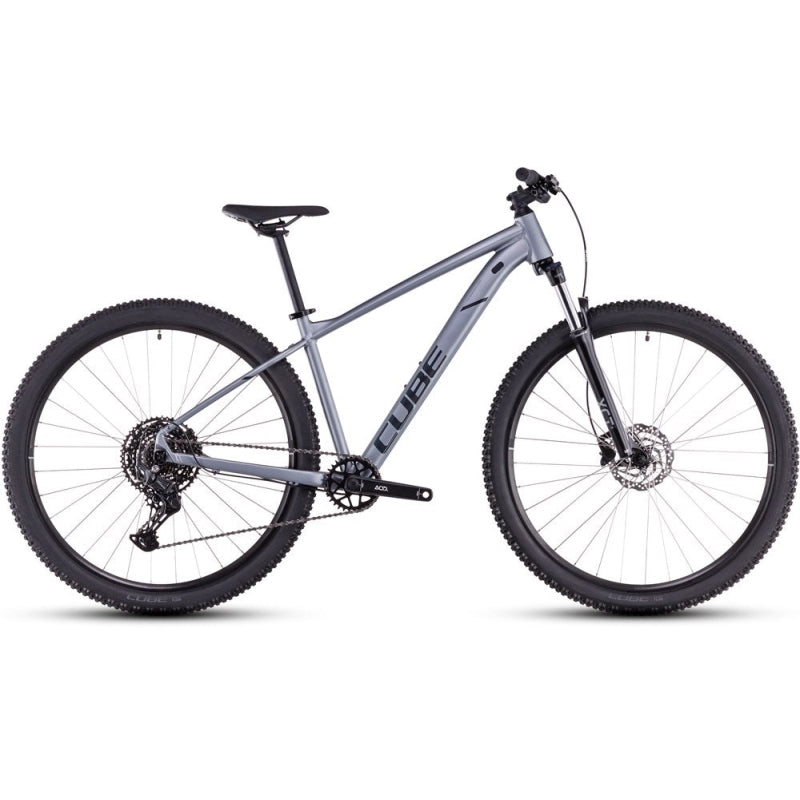

Cube Aim Race

SKU: FP_45677
$1,299.00
Shipping calculated at checkout.


Loading locations...

Description

The devil is in the details. At CUBE we know that only too well, which is why the Aim Race's 100mm suspension fork features a lockout ? so you can reduce bob and bounce when you're riding hard. With grippy tyres, powerful Shimano hydraulic disc brakes and the wide range of Shimano's Cues 10-speed gears, you've all you need to build your own adventure. And, with Size Split, there's an Aim Race that'll fit you perfectly.

Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Carefully thought out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.

Specifications

    GripsACID React
    HandlebarCUBE Rise Trail Bar, 680mm
    HeadsetCUBE FPH868p, Tapered, Semi-Integrated
    SaddleCUBE PP MTB ACID Venec Lite
    SeatpostCUBE Performance Post, 27.2mm
    StemCUBE Performance Stem, 31.8mm
    Bottom BracketThun Paso-ML, 73mm BSA
    BrakesShimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
    CassetteShimano Cues CS-LG400, 11-48T
    ChainKMC eGlide
    CranksetProwheel CC10Y-NW, 32T, 170mm
    Rear DerailleurShimano Cues RD-U6000-GS, 10-Speed
    ShiftersShimano Cues SL-U6000, Rapidfire-Plus
    ForkSR Suntour XCT Disc, 100mm, Lockout
    FrameAluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
    Approx. Weight14.6 kg
    Front HubShimano HB-QC300, QR, Centerlock
    Rear HubShimano FH-QC300-HM, QR, Centerlock
    RimsCUBE EX25, 32H, Disc, Tubeless Ready
    TyresCUBE MTB, 2.25
