Collection Only

Trek Rail+ 8

SKU: FP_43599
$10,999.00
Shipping calculated at checkout.


Loading locations...

Description

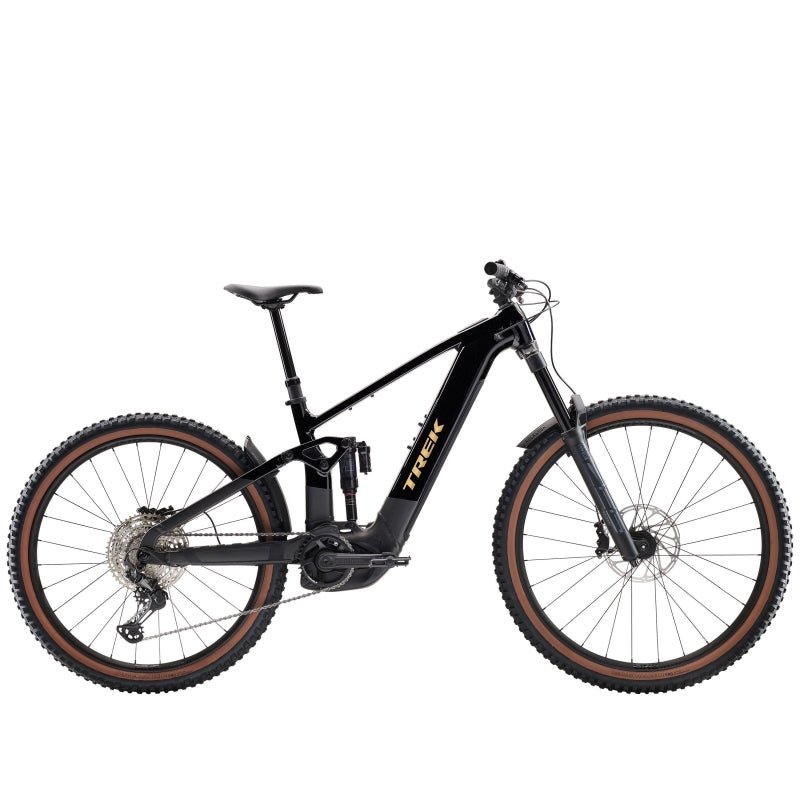

The Rail+ 8 is an aluminium enduro e-bike with big power and tons of travel for wild, ride-anything adventures. It starts with an Alpha Platinum Aluminium frame paired with a RockShox Super Deluxe+ shock and ZEB Select fork (160 mm front/rear) for making quick work of chunky backcountry rock gardens. You get the smooth-shifting performance of a Shimano XT/SLX drivetrain, stop-on-a-dime control from SRAM DB 8 4-piston disc brakes, a Bontrager Line dropper post and tubeless-ready Bontrager Line TLR 30 wheels.

- The Rail+ delivers adventure with plenty of travel and power for getting after epic rides that take you peak to peak or chasing endless enduro laps
- The powerful Bosch Performance CX system goes full gas up steep climbs and keeps you cool for the descents
- You can tweak your geometry and suspension leverage rate for how you ride, and add in adjustable angle headset cups (sold separately) for even more adjustability
- Want even more boost? With the Bosch e-Bike Flow app, you can increase torque to 100 Nm and peak power up to 750W.
- The massive 800 Wh RIB 2.0 battery supports you for big miles and can be easily removed for travel or storage, and is compatible with PowerMore for even bigger rides

-You want a bike that maximises the fun and is up for gnarly rides that get you off the grid or just hammering in an extra lap or two. You need the capability of an enduro bike for pointing it down the rough and rowdy, and love the feeling of full assist taking the sweat out of the climb back to the top for more
An Alpha Platinum Aluminium frame with a Bosch Performance CX system (85 Nm, 250 W) and 800 Wh Removable Integrated Battery 2.0. A 160 mm RockShox ZEB Select fork with DebonAir spring, Motion Control damper and lockout and a RockShox Deluxe Select+ RT shock. All topped off with a Shimano XT and SLX blended 12-speed drivetrain, dropper post, Bontrager Line Comp 30 Tubeless Ready wheels and 4-piston Shimano hydraulic disc brakes.

The Rail + 8 is an enduro e-MTB dialled for big adventures. It packs in capable, adjustable geometry, a massive battery and a powerful motor to get you wherever you want to go. An upgraded drivetrain balances price and performance for a ride that's ready for anything.


Bosch Performance Line CX motor: 100Nm upgrade ready
Bosch Performance Line CX sets the standard for eMTB performance with 85Nm of torque out of the box, but can be tuned all the way up to 100Nm and 750W of power using the Bosch eBike Flow app. The Bosch smart system also has intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

New RIB 2.0
Removable Integrated Battery (RIB 2.0) makes it easy to remove your battery for more convenient charging or travelling, and you dont have to worry about dropping it thanks to a secondary safety catch.

Extend your ride
Wanna take your ride even further? Pair a 250Wh PowerMore range extender with your bike to chase your most epic adventures.

Bosch Mini Remote
The compact, ergonomic Mini Remote lets you easily change assist level, activate Walk mode, or turn on optional lights, all without moving your hand off the handlebar. Plus, it's wireless and connects with your System Controller via Bluetooth


Mixed wheel size
You get a 29INCH front wheel for monster truckin' over stuff, with a smaller 27.5INCH wheel out back for getting rowdy.

Adjust the suss for full send
Adjust the leverage rate with just a flip of a chip. Ride it in the Less progressive setting for a plusher feel perfect for rugged trails with square-edge bumps. Flip it to More progressive when you're hitting big features and dont want to bottom-out, or when you want to run a coil shock.

Specifications

    GripsBontrager XR Trail Comp, nylon lock-on
    HandlebarBontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
    HeadsetIntegrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
    PedalsVP-536 nylon platform
    SaddleBontrager Verse P3, steel rails
    SeatpostSize: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length Size: M, L, XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length Size: L, XL Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
    StemBontrager Elite, 35 mm, 0-degree, 45 mm length
    BrakesSRAM DB 8 4-piston hydraulic disc
    Brakes RotorSRAM CentreLine, 6-bolt, round-edge, 200 mm
    CassetteShimano Deore M6100, 10-51, 12-speed
    ChainShimano SLX M7100, 12-speed
    Chainring1x: 36T
    CranksetE*thirteen E*spec Plus, 160 mm length
    Rear DerailleurShimano XT M8100, long cage
    ShiftersShimano SLX M7100, 12-speed
    E MotorBosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
    E Motor BatteryBosch PowerTube 800 Wh, smart system
    E Motor ChargerBosch standard 4A, 230V, smart system
    Remote SystemBosch System Controller BRC3100, smart system
    ForkRockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 160 mm travel
    FrameAlpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel
    Frame MaterialAlpha Platinum Aluminium
    Front Travel160 mm
    Rear ShockRockShox Super Deluxe Select RT, 205mm x 65mm
    Rear Travel160 mm
    Approx. WeightM – 25.08 kg/55.3 lb (with TLR sealant, no tubes)
    ExtrasTrek 27.5" custom fender
    Front TyreBontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi
    Front WheelSize: S Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5" Size: M, L, XL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
    Rear TyreBontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi
    Rear WheelBontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 27.5"
