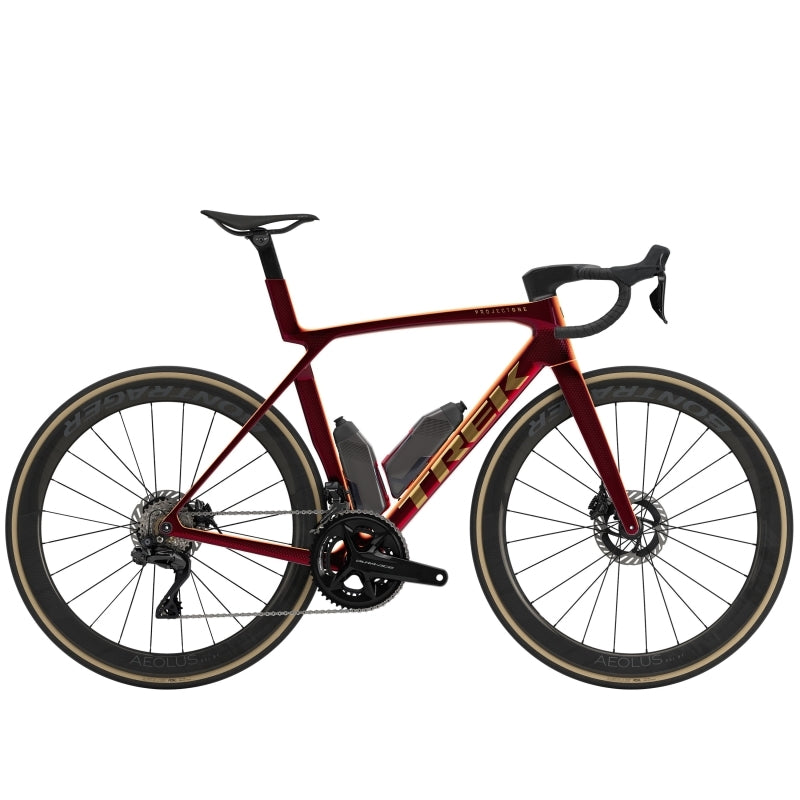

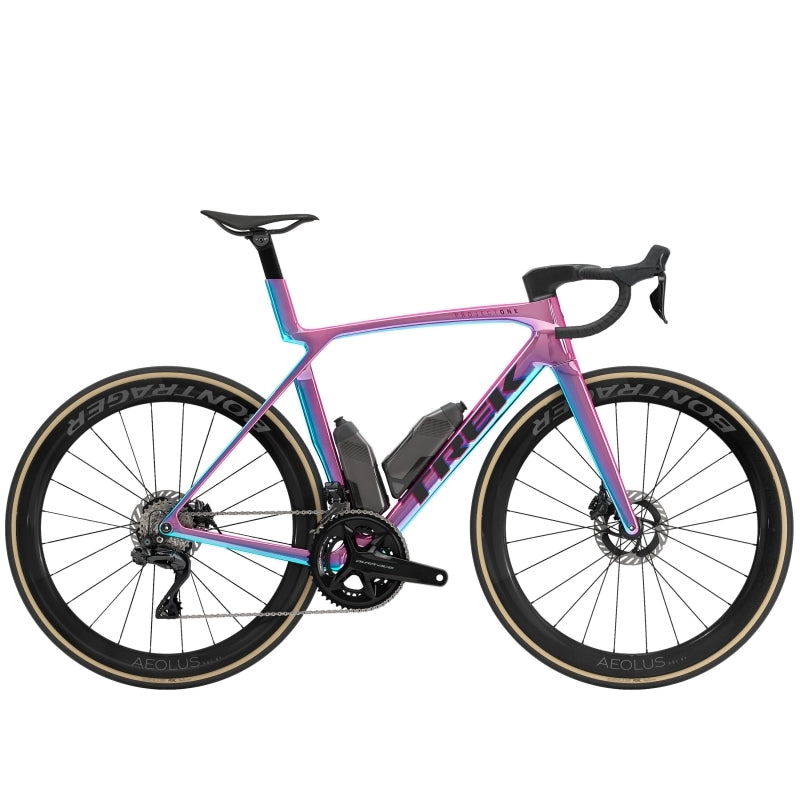

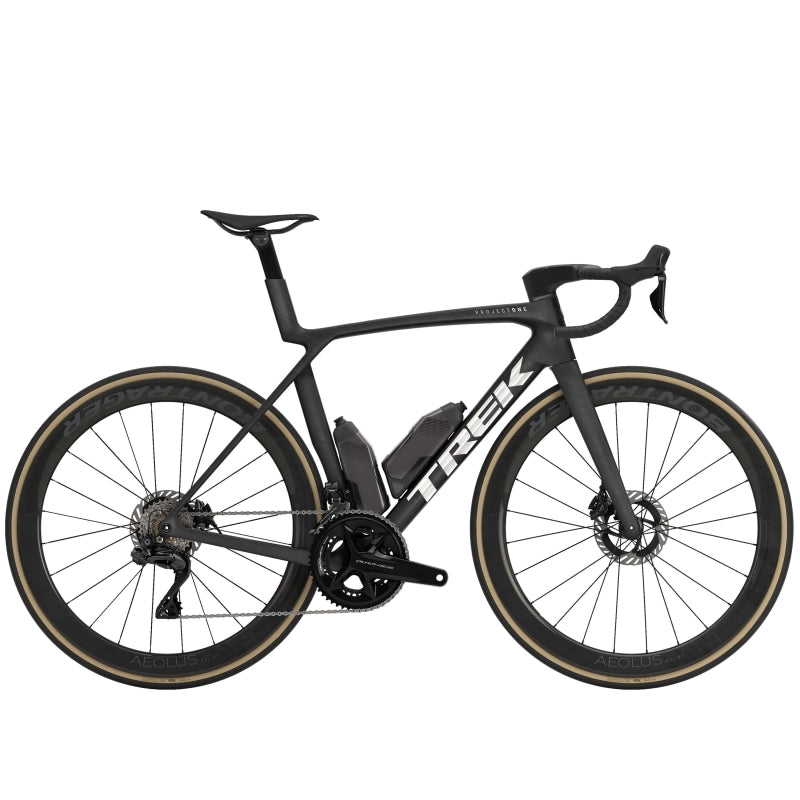

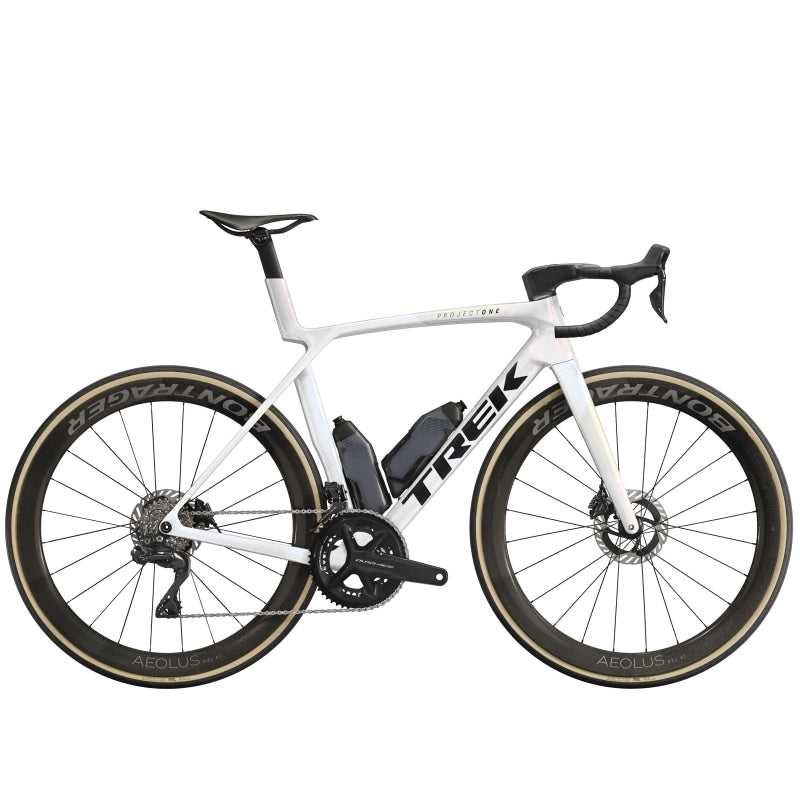

Trek Madone Slr 9
Trek Madone Slr 9 - Icon Serpentine / MEDIUM/LARGE is backordered and will ship as soon as it is back in stock.
Description
Description
The Madone SLR 9 Gen 8 is built for dominating the roads with equal parts light weight and aerodynamic speed. Its crafted from our highest-level 900 Series OCLV Carbon that's not only insanely light, but delivers aerodynamic shapes for crushing descents and straightaways. This build comes ready to win with Shimano's top-of-the-line Dura-Ace Di2 wireless drivetrain, Bontrager Aeolus RSL 51 carbon wheels, a Trek Aero RSL one-piece carbon bar/stem and RSL Aero Bottles and Cages for more drag reduction.
- The Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimise aerodynamics around the whole bike
- It's crafted from our highest-level 900 Series OCLV carbon, which is mind-bogglingly light and stiff where you need the power, and compliant where you crave comfort
- Carbon wheels keep weight down and performance up, so you can crush climbs and soar down descents
- You get the lightning-fast shifts of Shimano's lightest drivetrain Dura-Ace Di2
- RSL Aero Bottles and Cages make the whole rider system faster to give you even more aerodynamic gains
- A new Blendr system on the bar/stem makes it easy to add and remove a daytime running light
You eat, sleep and breathe racing, and you want the best road race bike we've ever made. You're looking for a trifecta of aerodynamics, comfort and lightweight in a single bike. You're willing to splurge on things that matter, like our highest-level carbon lay-up, best component spec and any detail that will give you the competitive edge on race day.
An insanely light frame made of our highest-level 900 Series OCLV Carbon with aero tubing and IsoFlow comfort technology, and RSL Aero Bottles and Cages that save watts. Shimano's top road group set Dura-Ace Di2, for lightning-fast shifts that you can customize. A universal derailleur hanger so you can get a replacement from anywhere. Plus, it's topped off with Bontrager Aeolus RSL 51 tubeless carbon wheels and a Trek Aero RSL one-piece bar/stem.
The Madone SLR 9 Gen 8 is our lightest, most aerodynamic, top-performing Madone, ready to deliver superbike performance absolutely everywhere. Its crafted with a supremely light 900 Series OCLV Carbon frame for rocketing up climbs, aero tube shaping for slicing through windy descents and IsoFlow comfort tech to keep you feeling good through it all. It's spec'd with the top components and doesn't make any compromises.
Our lightest Madone Disc ever
New light and fast aero tube shaping paired with our best 900 Series OCLV Carbon makes Gen 8 our lightest Madone Disc f/s ever and as light as the Emonda f/s.
Redefines what fast looks like
Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness that climbers crave. Plus, the bikes entire rider system was meticulously designed and rigorously tested to be faster everywhere.
80% more vertically compliant IsoFlow
We refined our race-focused comfort tech to be lighter and have nearly double the vertical compliance so you can ride stronger for longer.,BR.
Designed for the worlds best
The Madone SLR Gen 8 is raced and loved by Lidl-Trek's fastest sprinters and climbers and is the only bike they need for race day.
One-piece Aero RSL bar/stem
A new one-piece bar/stem is lighter, more aerodynamic and more ergonomic than the previous version. Plus, the hoods are 3 cm narrower than the drops so you can adjust your positioning to prioritise aerodynamics (in the hoods) or power (in the drops).
RSL Aero Bottles and Cages
Included RSL Aero Bottles and Cages were specifically designed along with the whole rider system to help make the Madone even faster.
Specifications
Specifications
| Bartape | Trek EcoTack |
| Handlebar | Handlebar/stem (integrated) Size: XS Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length Size: S Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length Size: M Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length Size: ML, L Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length Size: XL Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length |
| Saddle | Size: XS, S Aeolus RSL, carbon rails, 155 mm width Size: XS, S, M, ML, L, XL Aeolus RSL, carbon rails, 145 mm width |
| Seatpost | Size: XS, S, M, ML, L, XL Madone aero carbon seat post, 0 mm offset, short length Size: ML, L Madone aero carbon seat post, 0 mm offset, long length |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Brakes | Shimano Dura-Ace hydraulic disc, flat mount |
| Brakes Rotor | Shimano CL900, CentreLock, 160 mm |
| Cassette | Shimano Dura-Ace R9200, 11-30, 12-speed |
| Chain | Shimano Dura-Ace/XTR M9100, 12-speed |
| Chainring | Max. chainring size 1x: 54T, 2x: 56/43 |
| Crankset | Size: XS, S Shimano Dura-Ace R9200, 52/36, 165 mm length Size: M, ML, L Shimano Dura-Ace R9200, 52/36, 170 mm length Size: ML, L, XL Shimano Dura-Ace R9200, 52/36, 172.5 mm length Size: XL Shimano Dura-Ace R9200, 52/36, 175 mm length |
| Front Derailleur | Shimano Dura-Ace R9250 Di2, braze-on, down swing |
| Rear Derailleur | Shimano Dura-Ace R9250 Di2, 34T max cog |
| Shifters | Shimano Dura-Ace R9270 Di2, 12 speed |
| Fork | Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle |
| Frame | 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
| Approx. Weight | ML - 7.05 kg/15.55 lb (with TLR sealant, no tubes, no bottles/cages) |
| Front Wheel | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100x12 mm thru axle |
| Rear Wheel | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, Shimano 11/12 freehub, 142x12 mm thru axle |
| Tyres | Size: XS, S, M, ML, L, XL Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700x28 mm Size: XS, S, M, ML, L, XL Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700x28 mm |
