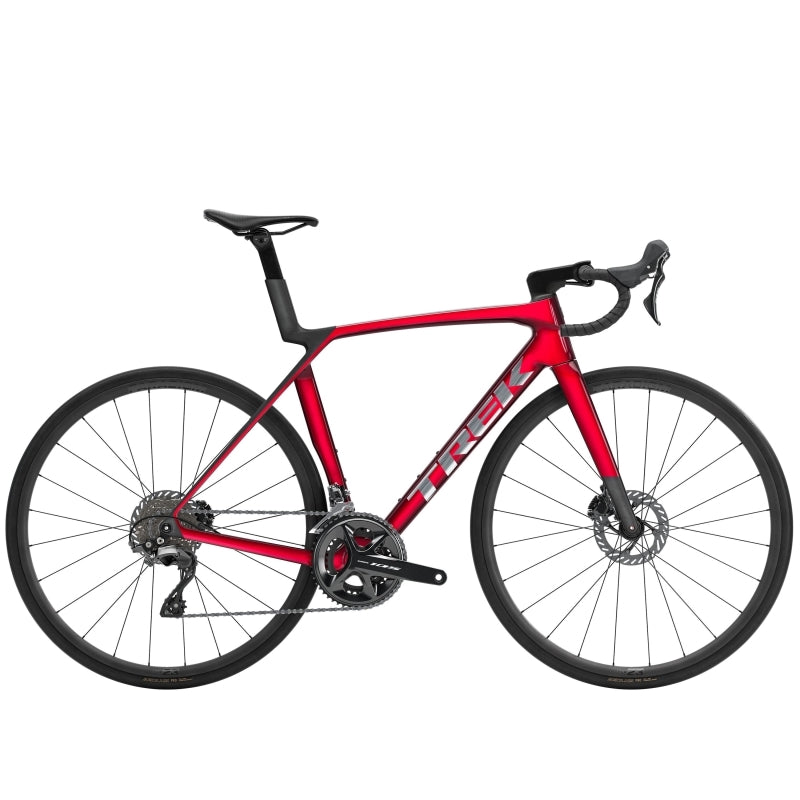

Trek Madone SL 5
Trek Madone SL 5 - Gloss Fury Red / Matte Deep Smoke / X-SMALL is backordered and will ship as soon as it is back in stock.
Description
Description
Our lightest Madone SL Disc ever
New light and fast aero tube shaping paired with light-yet-economical 500 Series OCLV Carbon makes Gen 8 our lightest Madone SL Disc f/s ever and the ideal climbing bike.
Redefines what fast looks like
Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness that climbers crave. Plus, the bikes entire rider system was meticulously designed and rigorously tested to be faster everywhere.
80% more vertically compliant IsoFlow
We refined our race-focused comfort tech to be lighter and have nearly double the vertical compliance so you can ride stronger for longer.
Rooted in racing
The Madone SL was informed by feedback from Lidl-Trek's fastest sprinters and climbers.
Adjustable aero cockpit
The Madone Gen 8 features hoods that are narrower than the drops so you can adjust your positioning to prioritise aerodynamics or power. Plus, the two-piece design lets you quickly and easily dial in your fit.
Add-on aero bottles to make your whole bike faster
The add-on RSL Aero Bottles and Cages were designed with Madone Full System Foil aero shapes to make the whole rider system even faster.
Specifications
Specifications
| Bartape | Trek EcoTack |
| Handlebar | Size: XS Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width Size: S, M Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width Size: ML, L Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width Size: XL Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
| Saddle | Bontrager Aeolus Elite, austenite rails, 145 mm width |
| Seatpost | Madone aero carbon seat post, 0 mm offset, short length |
| Stem | Size: XS Trek RCS Pro, -7-degree, 80 mm length Size: S, M Trek RCS Pro, -7-degree, 90 mm length Size: ML, L Trek RCS Pro, -7-degree, 100 mm length Size: XL Trek RCS Pro, -7-degree, 110 mm length |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Brakes | Shimano 105 hydraulic disc, flat mount |
| Brakes Rotor | Shimano CL700, CentreLock, 160 mm |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Crankset | Size: XS, S Shimano 105 R7100, 50/34, 165 mm length Size: M, ML Shimano 105 R7100, 50/34, 170 mm length Size: L, XL Shimano 105 R7100, 50/34, 172.5 mm length |
| Front Derailleur | Shimano 105 R7100, braze-on, down swing |
| Rear Derailleur | Shimano 105 R7100, 36T max cog |
| Shifters | Shimano 105 R7120, 12-speed |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru axle |
| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
| Approx. Weight | SIZE M/L - 8.64 kg / 19.05 lbs (with tubes) |
| Front Hub | Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Rims | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
| Tyres | Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28 mm |
