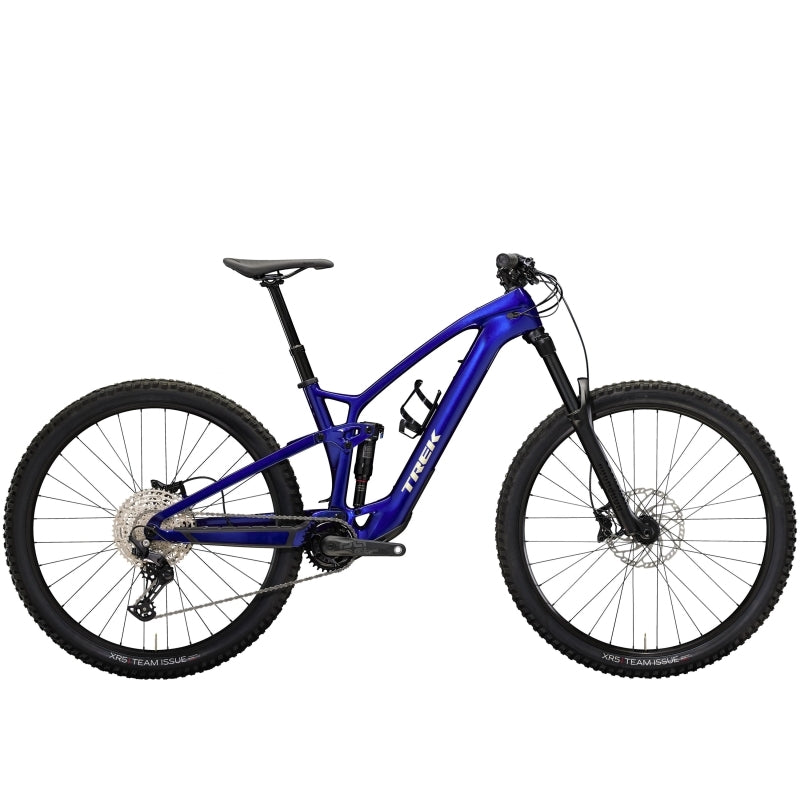

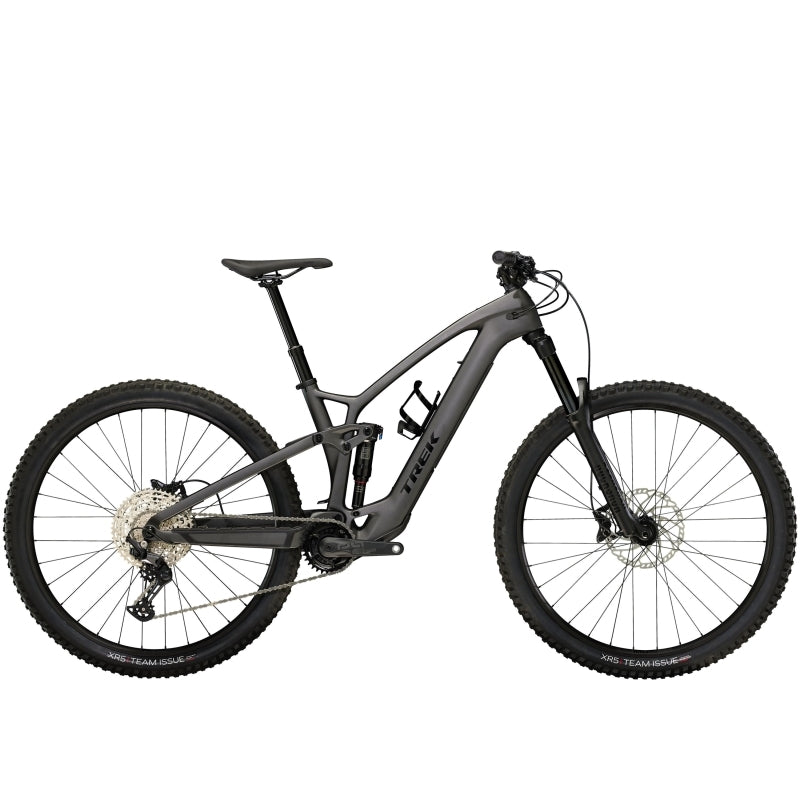

Trek Fuel Exe 9.5

The Fuel EXe 9.5 Deore is a new kind of e-mountain bike that bridges the divide between pedal-assist and traditional bikes. It features a carbon frame and a compact motor that keeps the ride light, lively and quiet. Get the benefit of pedal assist on long climbs, and the playful feel of a traditional mountain bike on descents. It's built up with a 150 mm RockShox Gold RL fork that makes quick work of rock gardens, and 140 mm of plush RockShox Deluxe Select+ rear suspension for a smooth ride and small bump compliance.

- You get discreet power when you want it, and the nimble feel of a traditional mountain bike wherever you roll
- Its tiny-but-mighty TQ transmission is tuned for the trail, keeping things quiet so you can stay in the moment, and ramps up power with you for a natural ride feel
- The smart charge port, sleek integrated display and discreet controls keep the bike looking and feeling like a traditional mountain bike
- Its 150 mm of buttery-smooth front travel pairs with 140 mm of rear suspension to eat up rocks and roots for a ride that's ready to tackle anything
- You'll be able to add on a range extender when you want a little extra fuel in the tank for big days on the bike

- You want a trail bike that's ready to ride everywhere, and gives you a little extra fuel on the ascents. You don't want to sacrifice the nimble feel of a traditional trail bike for a beefy motor, and prefer a refined assist that feels and sounds natural underneath you.
An OCLV Mountain Carbon frame with a fully encased 360 Wh battery, and TQ harmonic pin ring transmission with a smart charging port, integrated LED display and discreet handlebar remote. 150 mm RockShox 35 Gold RL fork with DebonAir spring and Motion Control damper, and 140 mm RockShox Deluxe Select+ rear suspension. Plus, tubeless-ready wheels and tyres, and 12-speed Shimano Deore drivetrain.
The Fuel EXe 9.5 is a lively trail bike that gives you extra boost on the climbs, and feels like a traditional bike on descents. It's packed with space-age technology of a TQ harmonic pin ring transmission, plenty of buttery-smooth suspension to gobble up rocks and roots, and a workhorse drivetrain that won't quit on you.

Technical Specifications:

- Primary Battery Type: 360WH
- Rim Size: 29INCH
- Frame Material: Carbon

Detailed Specs:


- Frame: OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
- Fork: RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
- Fork Travel (Max): 160 mm
- Shock: RockShox Deluxe Select+ RT, 205mm x 60mm
- Tires: Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50INCH
- Tire size (max): Frame: 29x2.50INCH, Fork: See manufacturer
- Tire Size: 29x2.50INCH
- Tire Part: Bontrager TLR sealant, 180 ml/6 oz
- Hub (front): Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
- Hub (rear): Bontrager alloy, loose bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
- Rim: Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
- Spokes: 14 g stainless steel, black
- Skewer (rear): Bontrager Switch thru-axle, removable lever
- Shifters: Shimano Deore M6100, 12-speed
- Rear Derailleur: Shimano Deore M6100, long cage
- Crank: E*thirteen E*spec Plus, 165 mm length
- Crank Arm: E*thirteen E*spec Plus, 170 mm length
- Cassette: Shimano Deore M6100, 10-51, 12-speed
- Chain: Shimano Deore M6100, 12-speed
- Chainring (Max): 1x: 34T, min 30T
- Chainring: E*thirteen E*spec, 32T alloy ring, 55 mm chainline
- Brake: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 cal
