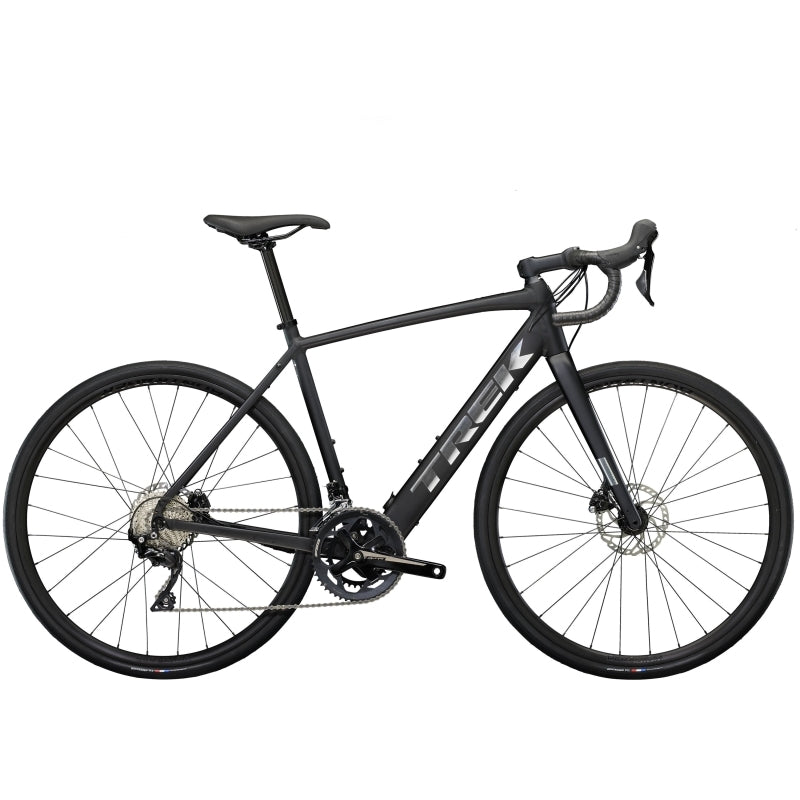

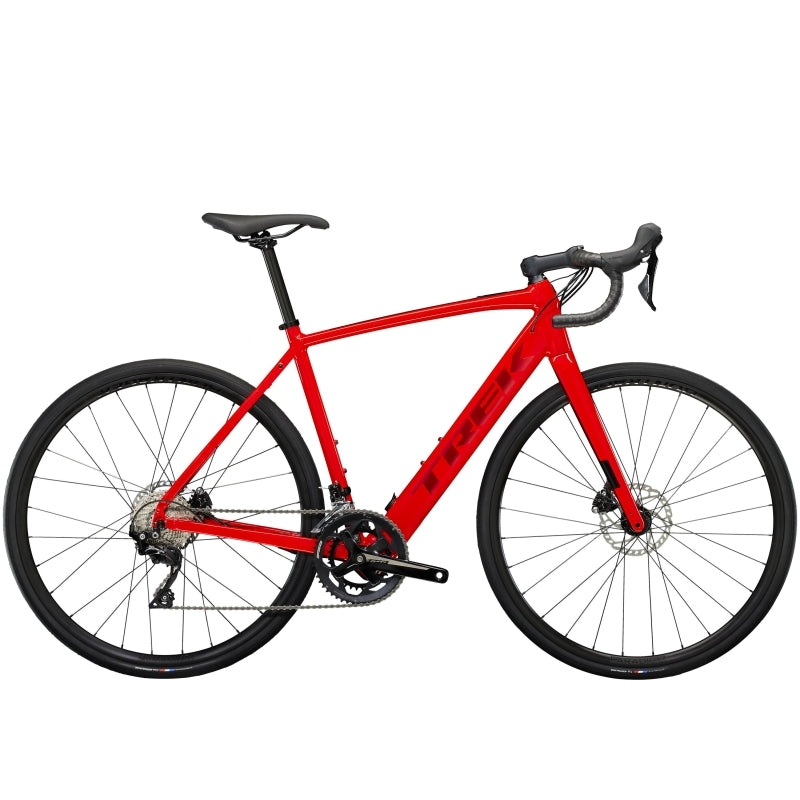

Trek Domane+ AL 5

The Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost. The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain or push yourself harder on training rides.

- This e-road bike looks, rides and feels more like a traditional road bike
- The HyDrive pedal assist system has a hub motor for a more natural ride feel
- Easily change electric assist level with top-mounted controls and keep track of assist and battery levels with the top tube display.
- The stable Endurance Geometry delivers comfort and confidence
- Double your range with a 250 Wh plug-and-play Range Extender battery that sits in your bottle cage

- You want a high-value e-road bike that looks and rides like a traditional road bike. You're looking for a natural-feeling boost that adds extra capability to training rides and club rides.
A lightweight aluminium frame and fork, a natural-feeling HyDrive hub motor (250 W, 40 Nm) that assists up to 20 mph (32 km/h in Europe) with a 250 Wh battery for a range of up to 90 kilometres per charge when ridden in eco mode. Plus a workhorse Shimano 105 2x11 drivetrain, tubeless-ready wheels and vibration-absorbing Elite IsoZone handlebars.
The Domane+ AL's streamlined and discreet drive system lets you get more out of every ride. You get true road bike feel with the benefit of an extra boost when you want it.

Technical Specifications:

- Primary Battery Type: 252WH
- Rim Size: 700C
- Frame Material: Aluminum

Detailed Specs:

- Frame: 100 Series Alpha Aluminium, hub drive system, tapered head tube, internal routing, flat-mount disc, rack and mudguard mounts
- Fork: Domane+ carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat mount disc, 12x100 mm thru axle
- Tires: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm
- Tire size (max): 38 mm without mudguards, 32 mm with mudguards
- Tire Size: 700x32c
- Hub (front): Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12mm thru axle
- Hub (rear): Hyena hub drive motor, 40 Nm, 250 W
- Rim: Bontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve
- Spokes: 14 g stainless steel, black
- Skewer (front): Bontrager Switch thru axle, removable lever
- Shifters: Shimano 105 R7025, short-reach lever, 11-speed // Shimano 105 R7025, short-reach lever, 11-speed
- Front Derailleur: Shimano 105 R7000, 31 mm clamp
- Rear Derailleur: Shimano 105 R7000, long cage, 34T max cog
- Crank: FSA Vero Pro, 50/34, 170 mm
- Bottom Bracket: Torque sensor, threaded, 110 mm spindle
- Cassette: Shimano 105 HG700-11, 11-34, 11-speed
- Chain: Shimano HG601, 11-speed
- Chainring (Max): 2x: 50/34
- Brake: Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin
- Rotor size: Max brake rotor sizes: 160 mm front and rear
- Brake Rotor: Shimano RT66, 6-bolt, 160 mm
- Saddle: Bontrager Verse Short Comp, steel rails, 155 mm width
- Seatpost: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
- Handlebar: Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width
- Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
- Headset: FSA Integrated, sealed cartridge bearing, 1-1/8INCH top, 1.5INCH bottom
