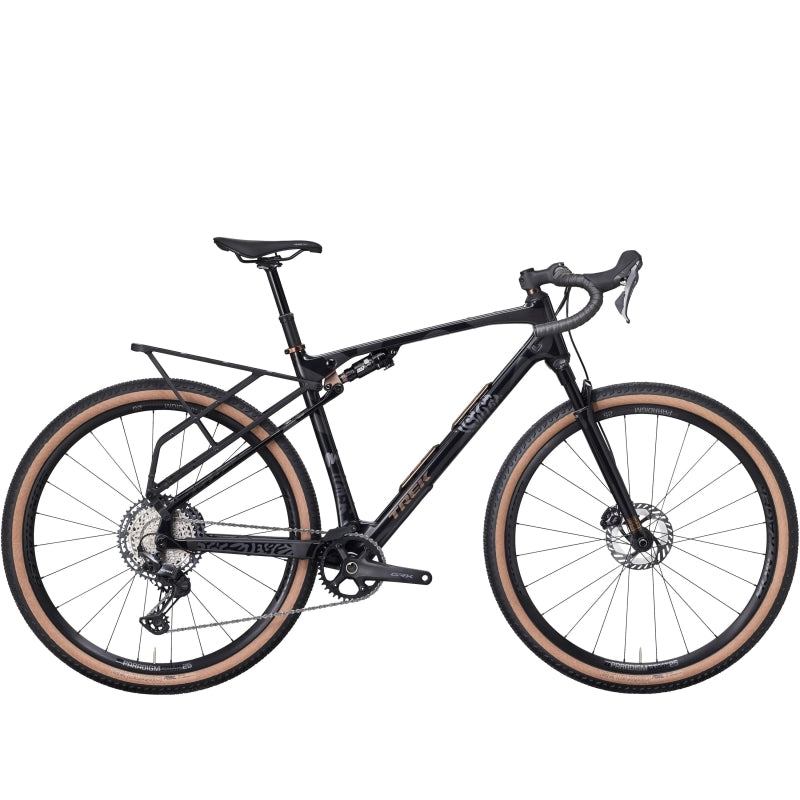

Trek Checkout SL 5

The CheckOUT SL 5 is an adventure-ready full-suspension gravel bike for getting far, far out there. Its carbon frame delivers 55 mm of rear travel from a RockShox SIDluxe IsoStrut shock, while a RockShox Rudy XL fork smooths rowdy roads and trails with 60 mm of travel. It comes ready to explore with Bontrager Paradigm Comp wheels, a 12-speed Shimano GRX drivetrain and TranzX dropper post.


Technical Specifications:
- Rim Size: 700C
- Frame Material: Carbon

- Detailed Specs

- Frame: 500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12 mm chamfered thru axle, 55 mm travel
- Fork: RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 60 mm travel
- Fork Travel (Max): 60 mm
- Shock: RockShox SIDluxe Ultimate 3P, 170 mm x 27.5 mm
- Wheel (front): Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
- Wheel (rear): Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
- Tires: Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x50 mm
- Tire size (max): 56 mm/2.20INCH (as measured, see manual for details)
- Tire Size: 700x50c
- Tire Part: Bontrager TLR sealant, 180 ml/6 oz
- Rim Strip: Bontrager TLR
- Skewer (rear): Bontrager Switch chamfered thru axle, removable lever
- Shifters: Shimano GRX RX820, 12-speed // Shimano GRX RX820, 12-speed
- Rear Derailleur: Shimano GRX RX822, 51T max cog
- Crank: Shimano GRX RX610, 38T, 160 mm length
- Bottom Bracket: Praxis, T47 threaded, internal bearing
- Cassette: Shimano XT M8200, 10-51, 12-speed
- Chain: Shimano XT M8100, 12-speed
- Chainring (Max): 1x: 38T
- Rotor size: Max brake rotor sizes: 180 mm front & rear
- Brake Rotor: Shimano CL800, CentreLock, 160 mm
- Saddle: Verse Short Comp, steel rails, 145 mm width
- Seatpost: TranzX JD-YSI36, 100 mm travel, internal routing, 31.6 mm, 328 mm length
- Handlebar: Bontrager GR Checkout, 42 cm
- Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
- Cargo Rack: Checkout rear rack
- Weight: ML - 12.74 kg / 28.09 lbs (with TLR sealant, no tubes, excluding rear rack)
- Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
- Shifter Brand: Shimano
- Rear Suspension Brand: RockShox
- Fork Brand: RockShox

Ride-it-all suspension
55 mm rear travel and a new 60 mm Rudy XL suspension fork designed in collaboration with RockShox help smooth out rough gravel roads and let you venture onto singletrack with more comfort and capability than a rigid gravel bike.
The ultimate off-road drop bar
A new GR CheckOUT gravel drop bar has multiple hand positionings for more comfort and efficiency wherever your ride takes you. Settle into narrow tops for more speed on champagne gravel or reach for the extra-wide drops for total control on the rough stuff.
The science of full-suspension gravel
The CheckOUT's full-suspension set-up is proven to decrease fatigue and increase comfort and control when compared to its rigid counterparts, leading to a 7.3% reduction in rider ventilation, a 41.5% reduction in fatiguing vibrational energy and 23% less steering variation.
Big ol' tyre clearance
Room for tyres up to 56 mm/2.2" wide lets you tackle the rough stuff with confidence.
Geometry designed to keep you in control
Get more stability and comfort on multi-surface, multi-day adventures with an all-new Gravel Adventure geometry designed with a longer reach and higher stack.
Built for bikepacking
Haul it all with 18* frame mounts, an integrated rear rack that works with the bike's suspension and dropper post, and Adjustable Multi-Mounts that lets you position your bottles and gear exactly where you want 'em in the frame.*Sizes ML and up
