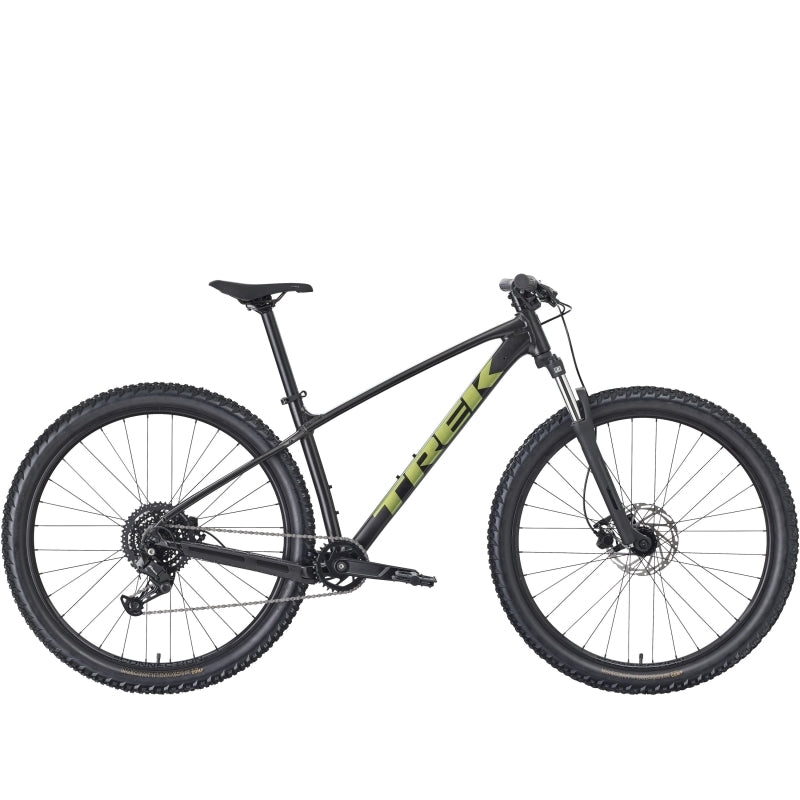

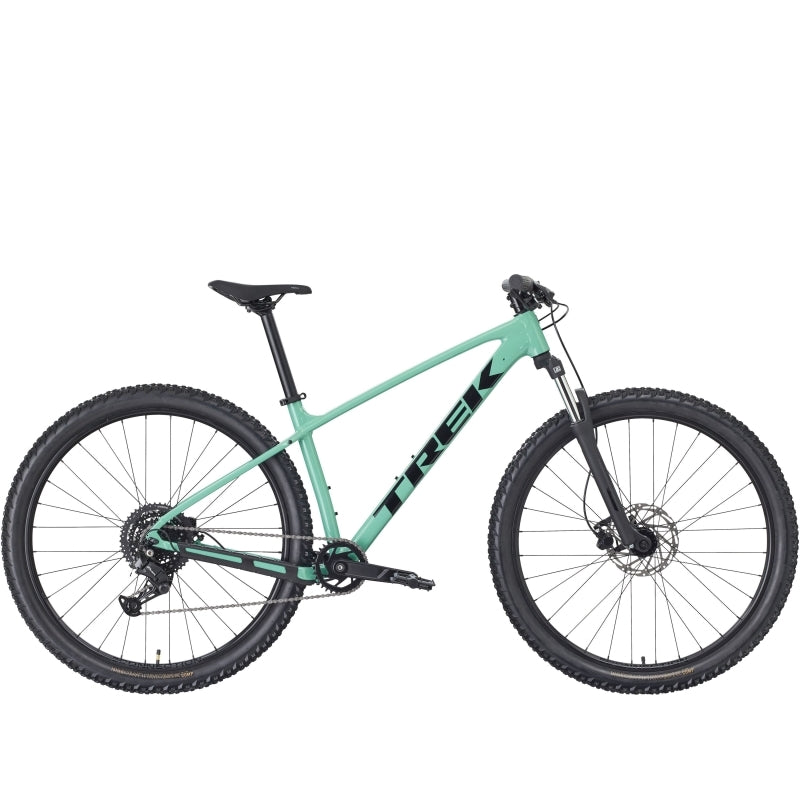

Trek Marlin 4
Trek Marlin 4 - Blue Sage / X-SMALL is backordered and will ship as soon as it is back in stock.
Description
Description
Will my bike have a curved top tube?
Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frame sizes have a straight top tube because taller riders with longer legs typically dont have the same issues with standover height.
Fit for every rider
Marlin comes in seven frame sizes to suit riders of any height, and Smart Wheel Size ensures youre on the fastest wheel that fits. The smallest sizes even come with short-reach brake levers and narrower handlebars that give smaller riders better comfort and control.
High tech, high value
Marlin looks and feels great. Its packed with features usually found only on more expensive bikes, like a stylish frame with internal shift cable and brake hose routing, which can help your cables last longer by protecting them from the elements.
Shimano CUES
Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimanos new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette and chainrings.
Shimano LINKGLIDE
LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting, along with a great pedalling experience. Available exclusively on Shimano CUES drivetrains.
Upgrade your pedals and love your bike more
Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.
Specifications
Specifications
| Grips | Trek Line Comp, nylon lock-on |
| Handlebar | Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width Size: ML , M , L , XL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Headset | Semi-integrated, 1-1/8'' |
| Pedals | Nylon platform |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | Size: M , XS , S Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length Size: ML , L , XL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
| Stem | Size: XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length Size: ML , M , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length |
| Brakes | Tektro HD-M275 hydraulic disc |
| Cassette | Shimano HG300, 11-45, 8-speed |
| Chain | KMC Z8.3, 8-speed |
| Crankset | Size: XS ProWheel alloy, 32T narrow-wide steel ring, 160 mm length Size: ML , M , S ProWheel alloy, 32T narrow-wide steel ring, 170 mm length Size: L , XL ProWheel alloy, 32T narrow-wide steel ring, 175 mm length |
| Rear Derailleur | Shimano ESSA U2000 |
| Shifters | Shimano M315, 8-speed |
| Fork | Size: XS SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel Size: S SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel Size: ML , M , L , XL SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
| Frame | Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew Size: ML , M , L , S , XL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
| Approx. Weight | M - 14.90 kg / 32.85 lbs |
| Front Hub | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| Rear Hub | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Rims | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Tyres | Size: XS , S Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40" Size: ML , M , L , XL Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40" |
