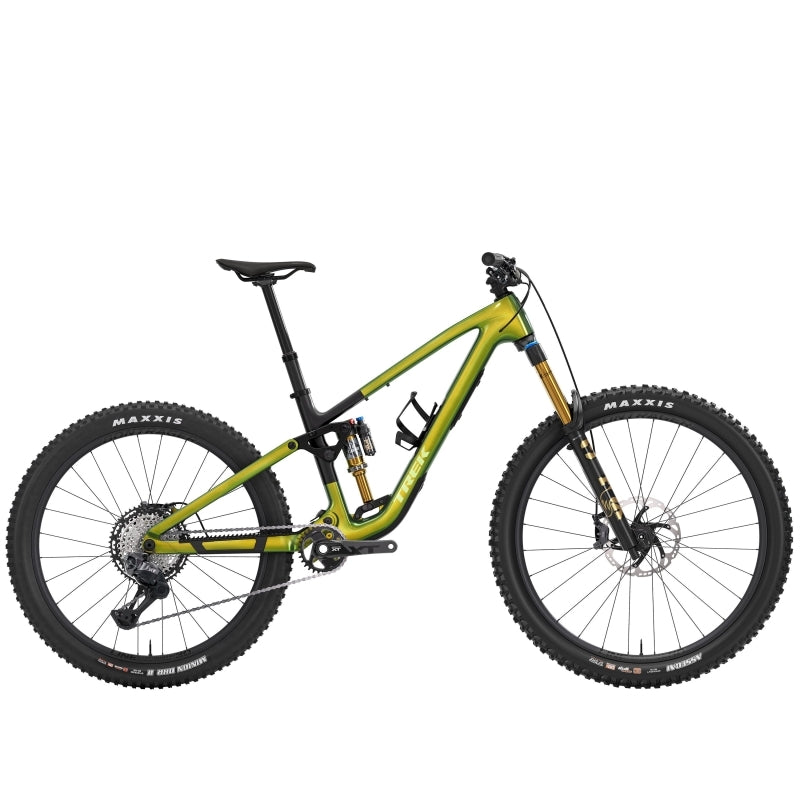

Trek Fuel MX 9.8 XT DI2
$13,199.00
Unit price
/
Unavailable
Trek Fuel MX 9.8 XT DI2 - Gloss Chameleon Green / Matte Black / SMALL is backordered and will ship as soon as it is back in stock.
order yours
Send an enquiry to order your Trek Project One bicycle.
Description
Description
The Fuel MX 9.8 XT Di2 is a chaos-craving carbon trail bike built for hitting bonus features. It starts off with an OCLV Mountain Carbon frame, speced with a Fox Factory suspension package (150 mm rear, 160 mm front) and MX wheels for getting wild on the trail. A wireless Shimano XT Di2 12-speed drivetrain gives you clean, customisable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-penny power.
Adapt, rip, repeat
Only you can define your perfect trail bike - that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Adjustable leverage rate
Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate.
Zero stack integrated headset
With a ZS standard headset, you've got loads of options for aftermarket upgrades, including angle adjust or anodised colours.
Storage and accessory mounts
Stash ride essentials with in-frame storage on all Fuel models, both carbon and alloy. Plus, top tube accessory mounts let you load up even more.
Fresh frame design
The Fuel's new frame gives you loads of room for long dropper posts, bigger shocks, frame bags and more.
Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
Adapt, rip, repeat
Only you can define your perfect trail bike - that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Adjustable leverage rate
Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate.
Zero stack integrated headset
With a ZS standard headset, you've got loads of options for aftermarket upgrades, including angle adjust or anodised colours.
Storage and accessory mounts
Stash ride essentials with in-frame storage on all Fuel models, both carbon and alloy. Plus, top tube accessory mounts let you load up even more.
Fresh frame design
The Fuel's new frame gives you loads of room for long dropper posts, bigger shocks, frame bags and more.
Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
Specifications
Specifications
| Grips | Trek Line Elite, lock-on |
| Handlebar | Race Face ERA, carbon, 35- mm, 27.5- mm rise, 800- mm width |
| Saddle | Verse Short Pro, carbon rails, 145 mm width |
| Seatpost | Bontrager Line Dropper, MaxFlow, internal routing, 34.9 mm S -150mm travel, 410 mm length / M - 170mm travel, 450mm lenght / L/XL - 200mm travel, 515mm length |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Brakes | Shimano XT M8200 4-piston hydraulic disc |
| Brakes Rotor | Shimano RT86, 6-bolt, 203 mm // Shimano RT86, 6-bolt, 180 mm |
| Cassette | Shimano XT M8200, 10-51, 12-speed |
| Chain | Shimano XT M8100, 12-speed |
| Crankset | Shimano XT 8200, 30T, 55 mm chain-line, 170 mm length |
| Rear Derailleur | Shimano XT M8250, long cage |
| Shifters | Shimano XT Di2 M8250, 12-speed |
| Fork | Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 160mm travel |
| Frame | OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
| Front Travel | 160mm |
| Rear Shock | Fox Factory Float X, 205 mm x 60 mm |
| Rear Suspension | 145mm-160mm |
| Approx. Weight | M - 15.09 kg / 33.27 lbs (with TLR sealant, no tubes) |
| Front Tyre | Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' |
| Front Wheel | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
| Rear Tyre | Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5'' |
| Rear Wheel | Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru-axle, 27.5" |
