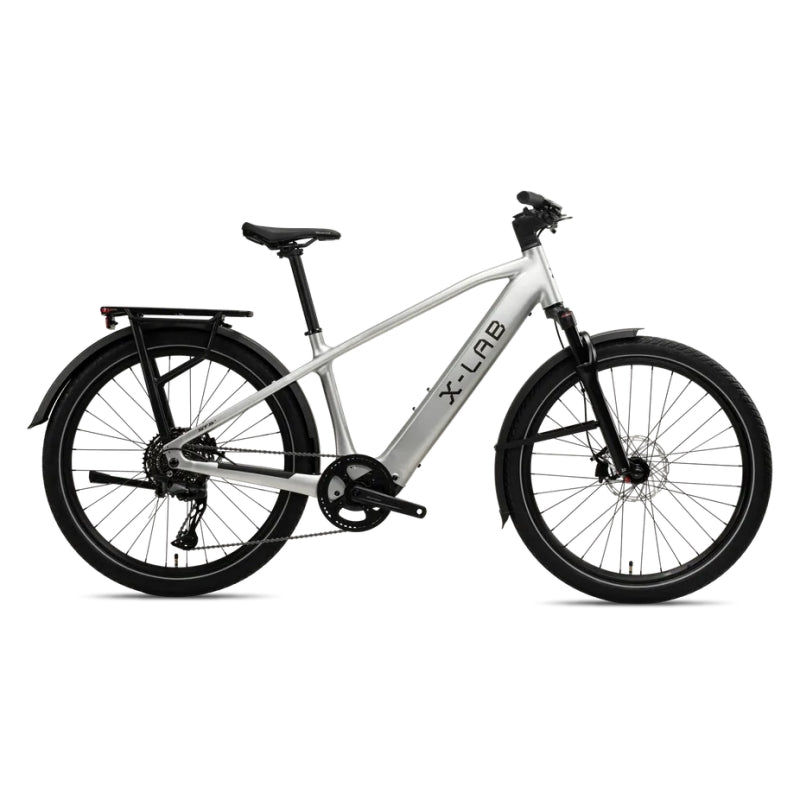

X-lab ST5+ X800

$3,699.90
Loading locations...

Description

The ST5+ brings X-LAB engineering to modern urban mobility.

Powered by an integrated electric system and built on a refined aluminum platform, the ST5+ delivers smooth acceleration, confident handling, and the comfort needed for everyday riding.

Designed for riders who want more from their city bike, the ST5+ makes commuting faster, cleaner, and far more enjoyable.

From daily travel to spontaneous detours, the ST5+ transforms the way you move through the city.

Specifications

    HandlebarBranta Alloy Integrated, w/ Display & Front light, 680mm Width, 90mm Length, 6 Degree Rise, 15 Degree Backsweep
    RackMIK-HD Rack
    SaddleBranta C301
    SeatpostXDS 31.6mm Alloy Seatpost , 350mm Length
    BrakesBranta EC4D Hydraulic E-Bike Brake, w/ Cutoff Switch, 3 Finger Lever, 4 Piston Caliper
    Brakes RotorBranta PN28, F:180mm R:180mm
    CassetteShimano CS-LG300 11-46T, 9-Speed
    ChainKMC E-GLIDE-S
    CranksetBranta Alloy Crankset, 46T, Narrow-wide Teeth
    Rear DerailleurShimano Cues RD-U4000, 9-Speed
    ShiftersShimano Cues 9-Speed
    BatteryXDS Rechargeable Li-ion Battery, 619Wh, LG Battery Cells, 3A Charger (0-100% 5hr)
    Drive UnitXDS Mid-drive X800 Motor, 250 Watt Maximum Continuous Rated Power, 470 Watt Peak Power, 95Nm Peak Torque, Dual-sided Torque Sensor
    ForkXDS Suspension Fork, Coil Spring, 80mm Travel, 110x15mm Thru-axle
    FrameXDS X6 Alloy Frame, UDH Compatible
    AccessoriesApple Find My Anti-Theft Technology, Bluetooth, OTA Updates
    Approx. Weight24.76 kg (Size L)
    ExtrasUL2271 and UL2849 Certified, Range up to 80mi, Class 2 (Unlock to Class 3 via the X-Lab Bikes Mobile App), Pedal-assist and Throttle, Integrated F+R Lights (+ Brake Lights), Max Load 330 lbs (150 kg)
    TyresCST CTC-06, 27.5’’x2.4, 30TPI, w/ Reflective Stripe
    WheelsetBranta Alloy E-Bike Wheelset
