Collection Only

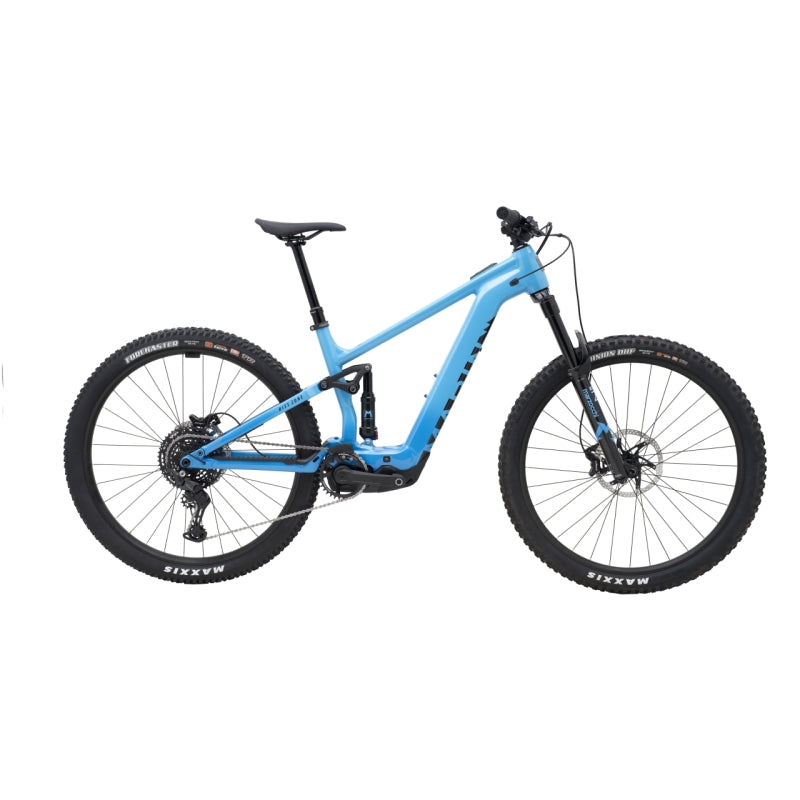

Marin Rift Zone EL 1

SKU: FP_34940
$6,999.00


Loading locations...

Description

The all-new Rift Zone EL ("Electric Light") trail eMTBs take everything you love about the Rift Zone and repurposes it into bikes that share the capability of the full-powered versions but in lighter packages.

Made possible in part by Bosch's new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride with a power delivery so natural you might forget its an ebike. With all the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don't require the full range and power output of more traditional eMTBs.

The Rift Zone EL1 is smartly spec'd with air-sprung Marzozzchi Bomber suspension, Shimano's stout and smooth-shifting CUES 10-speed drivetrain and powerful TRP Slate EVO 4-piston disc brakes.

Specifications

    GripsMarin Grizzly Lock On
    HandlebarMarin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5deg Up, 9deg Back
    HeadsetFSA Custom Headset, Adjustable HTA Design
    PedalsMarin MTB Plastic
    SaddleMarin Speed Concept
    SeatpostTranzX, YSl34 QL, Plastic lx Remote, Size S 150mm Travel, Size Mand L 170mm Travel, Size XL 200mm Travel, 34.9mm
    StemMarin 3D Forged Alloy, 35mm
    Brake LeversTRP Slate EVO Hydraulic Lever, I-Spec EV Compatible
    BrakesTRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
    CassetteShimano CS-LG300-10, 11-48T
    ChainShimano LG500
    Chainguidee*thirteen e*Spec Chainguide
    Cranksete*thirteen e*spec Plus, 160mm Length, 34T
    Rear DerailleurShimano CUES RD-U6000 GS, 10-Speed
    ShiftersShimano CUES SL-U6000-10R,10-Speed
    BatteryBosch 400Wh Internal
    DisplayBosch BRC3100 Systems Controller
    Display/ControllerBosch BRC3300 Bluetooth Remote 22.2mm Clamp
    Drive UnitBosch Performance Line SX, 55Nm torque
    ForkMarzocchi Bomber Zl 140mm Travel, 29, 110xl 5 Kabolt Thru Axle, 44mm Offset
    FrameAll New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
    Rear SuspensionAll New Marzocchi Bomber Air Shock
    ExtrasBolt-On 12mm Thru-Axle, 17 4mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
    Front HubShimano HB-TCS00, 110x10 Thru Axle, 32H, Centerlock
    Rear HubShimano FHTCS00, 148x12 Thru Axle, Mircospline, 32H, Centerlock
    RimsFront: 29 Diameter, 32mm Inner Rim Width; Rear: 27.5 Diameter, 32mm Inner Rim Width, Tubeless Compatible
    Spokes14g Black Stainless Steel
    TyresFront: Maxxis Minion DHF, 29x2.4 MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4, Tubeless Ready MAXX TERRA EXO+
